About

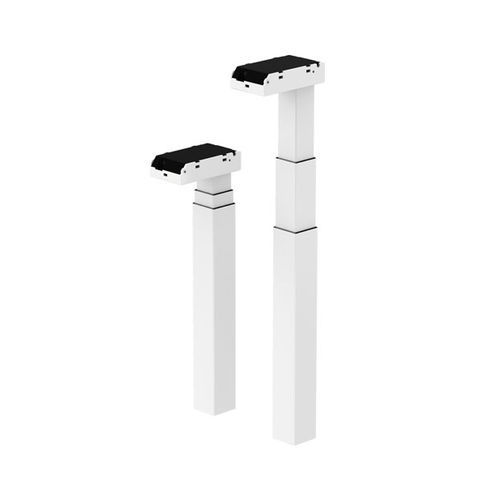

TiMOTION’s TL4K series is a high-value lifting column designed explicitly for ergonomic desks, work tables, and other height-adjustable systems. Work surfaces adapt quietly and smoothly with synchronous movement. The TL4K uses multiple TL series lifting columns with compatible TC series Control Boxes and TH/TDH series controls. All Ergo Motion TC series control boxes have a less than 0.1W standby power option that reduces power consumption. Our wide range of columns offers solutions to satisfy customers’ working environment project requirements. The TL4K has a three-stage telescopic profile designed for a narrow-top, wide-bottom square appearance.
• Max. speed at max. load: 32mm/s
• Max. speed at no load: 45mm/s
• Retracted length: Standard: 590 / 560 (M) / 520 (S)mm; for shoes: 610 / 580 (M) /540 (S)mm
• Dimension of outer tube: 70*70mm square
• Output signals: Hall sensors
• Color: Black, white, grey, or special grey
• Operational temperature range: +5°C~+45°C
• With motor house
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for furniture
|
| Electrical characteristics |
synchronous
|
| Other characteristics |
|
| Voltage DC |
24V DC
|
| Force (N) |
0 - 600
|
| Stroke (mm) |
650 - 660
|
