About

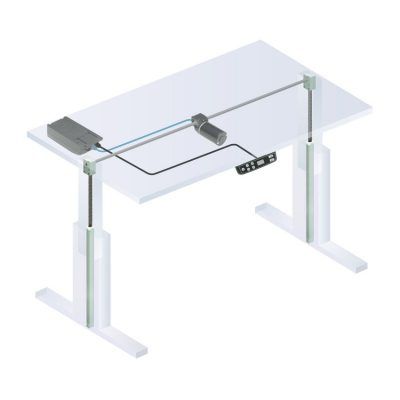

MTM4-LF is a hollow shaft gear motor. It can be used with MTC3 control box, MTS2 built-in spindle and MTP3 / MTP4 control panel, as a smooth and quiet solution for electric lifting table.
Main applications: Furniture
Technical Information
- Input voltage: 24V DC
- Max. speed at no load: 110rpm after gear reduction
- Max. torque: 7Nm
- Dual Hall sensors positioning feedback
- Hollow shaft: Hexagon 6 mm diameter
- Noise level: ≦53dB
- IP Protection level: IP30
- Color: Black
- Power cord length: 1000 mm
- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
- Certified: CE marking, EMC Directive 2014/30/EU
Options
- Standard motor / High speed motor
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Motor type |
DC
|
| Type |
worm
|
| Shaft orientation |
right angle
|
| Shaft configuration |
hollow-shaft
|
| Voltage (V) |
24 - 24
|
| Torque (Nm) |
5 - 10
|
| Product applications |
for furniture
|
| Certifications |
CE
|
| Other characteristics |
|
| Operating temperature (°C) |
0 - 45
|
