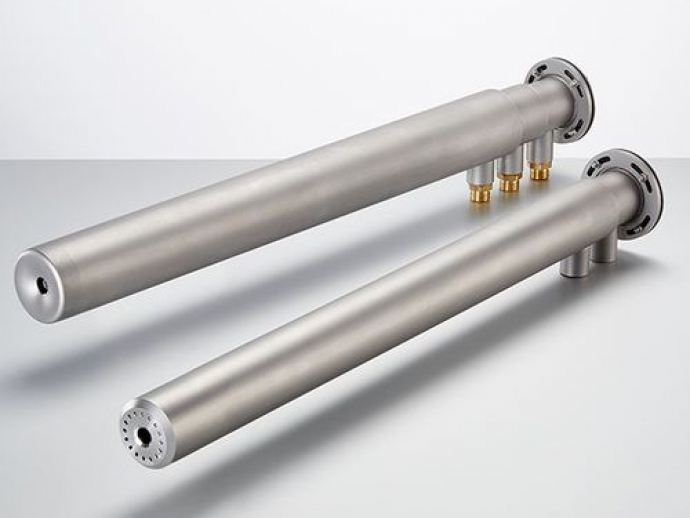

Compact furnace camera with air or water cooling for visualization of combustion chambers, combustion processes, flames and other hot processes.

FEATURES
Digital real-time images with a resolution of 1,400 x 1.050 pixels
High-speed lens with better optical resolution than the camera used
Wide and flexible angle of view from 30 … 90°
Can be used at up to 2,000 °C in the combustion chamber
Can be expanded into a thermography and analysis system with the D-VTA 200 software

BENEFITS
Brilliant live images from the combustion chamber around the clock
Detection of radiation and process fluctuations: The exposure time is not automatic and can be set by remote control, which means that radiation fluctuations in the process or flames are detected immediately
Wide angle of view into the combustion chamber, as the furnace camera penetrates through the furnace wall into the chamber
Low maintenance costs: Thanks to the high-temperature lens, a retraction unit is generally not required
Flexible system: The furnace camera can be expanded into a thermography system with the thermography software D-VTA 200

APPLICATIONS
Monitoring of the out burning zone in grate fired furnaces for waste or biomass incineration
Monitoring of temperature distribution on and above the grate in waste incineration or biomass power plants
Visualization of combustion in power plant boilers with coal, oil or gas combustion

Parameter Name	Parameter Value
Applications	for furnaces
Technology	digital
Function	monitoring thermographic
Spectrum	full-color
Other characteristics	cooled IP66
