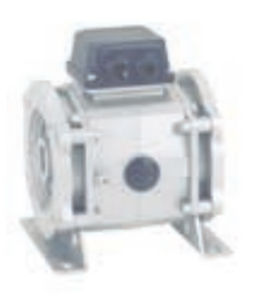

COMBIBOX clutch/brake combinations are designed for joining, separating and holding rotating shafts.

The units are constructed in compact aluminium housing and provide an autonomous bearing that can be used between motor and gearing or for direct output of a machine function.

The patented adjustment procedure for tracking the airgap for wear adjustment without dismantling is unique. The flexible mounting in different versions makes it suitable for a range of applications.

Properties
■ Voltages from 24 V to 205 V DC, different voltage (optional)
■ Backlash-free transmission
■ Residual torque-free separation

Parameter Name	Parameter Value
Type	friction
Operation	electromagnetic
Other characteristics	zero-backlash
Torque (Nm)	6 - 130
