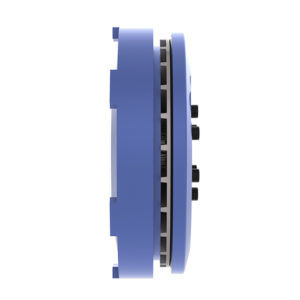

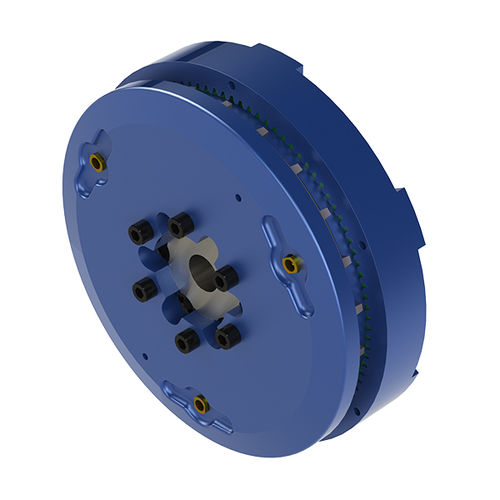

WPT Power Grip Clutches are designed to accommodate in-line and shaft-to-shaft power transmission applications with large inertia loads. Our air-tube design allows seamless, controlled engagement and disengagement with minimal air volume. Power Grip clutches allow for quick response, space-saving footprints, minimal maintenance requirements and are available in sizes ranging from 8” to 60”.

Power Grip Clutch Features

Extended hub teeth for serviceability
Wave Springs as standard release spring
Optional standard or quick change driving adapters
Optional split Air tubes and Friction Discs for easier replacement and minimal downtime
Available with pneumatic or hydraulic actuation

Parameter Name	Parameter Value
Type	friction
Operation	pneumatic, hydraulic
Applications	for high-torque applications for heavy-duty applications for marine applications
Torque (Nm)	854 - 854 0 - 0
Rotational speed (rpm)	380 - 3600
