As more and more aerial work platforms are using electric driven. The brake systems have become even more critical for safety.

Reach Machinery has brakes which are specifically designed for aerial work platforms, providing reliable and efficient braking in even the most challenging conditions.

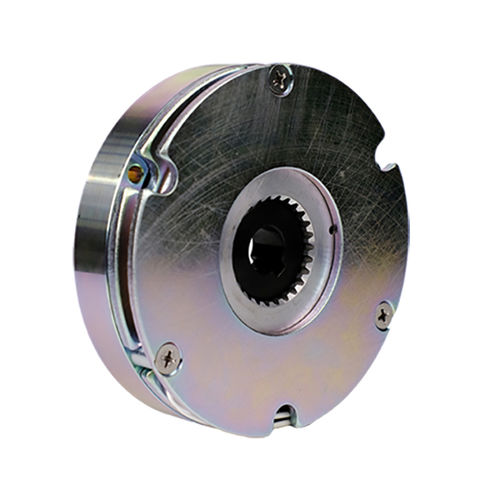

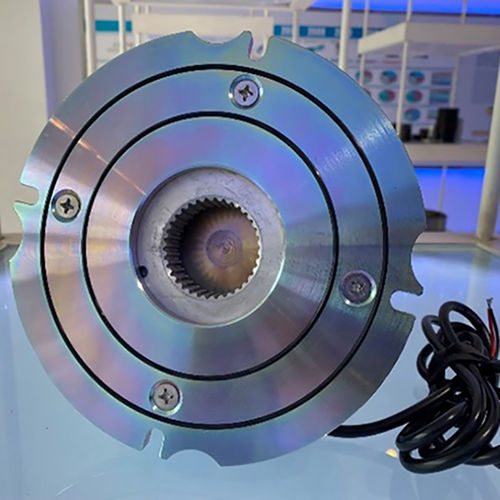

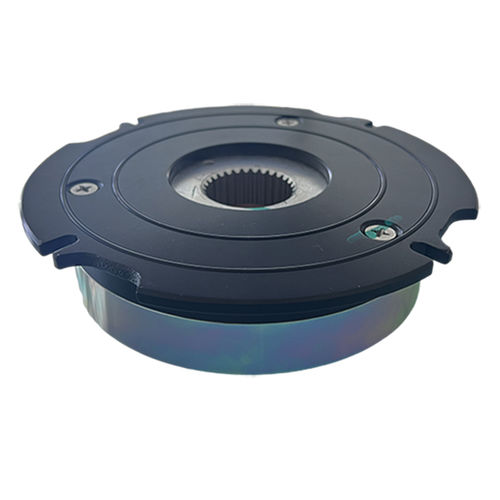

REACH REB series spring-applied electromagnetic brake for Aerial Work Platform is a type of dry friction brake (failsafe when power-on, and brake when power-off) with reliable braking and holding force.

The modular product design of the REB series spring-loaded electromagnetic brake makes it easy for customers to choose. By combining different accessories, it can meet the different needs of customers。

Technical Parameters
Rated voltage of Brake (VDC): 24V,45V,96V,103V,170, 180V,190V,205V.

Protection Level: IP67

Advantages
High safety performance: Certificated by national hoisting and conveying machinery quality supervision and inspection center-type test.

Good sealing: Reach electromagnetic brakes feature excellent sealing, which prevents dust, moisture, and other contaminants from entering the brake, ensuring its reliability and long-term operation.

High protection level: It is designed with a high protection level, which ensures that it can operate safely and effectively even in harsh and demanding environments.

Multi-torque capability: Our electromagnetic brakes are capable of producing multiple torque values, making them ideal for both the Scissor Aerial Work Platform and Boom Aerial Work Platform

Parameter Name	Parameter Value
Type	friction
Operation	electromagnetic
Other characteristics	failsafe
Torque (Nm)	4 - 125
