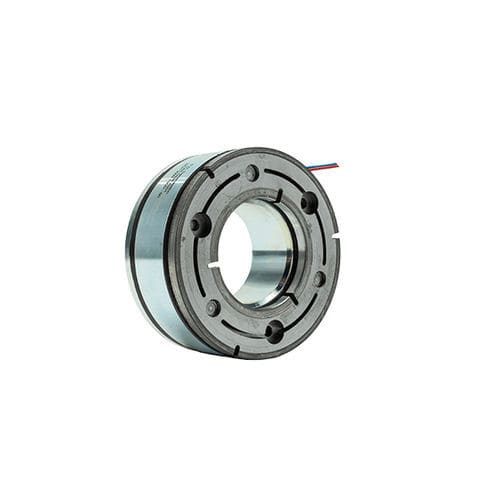

Permanent magnet power off brake
Fail-safe, zero backlash permanent magnet power off brakes for use in high precision, high power applications.

Key features

Fail-safe
Zero backlash
High power density
Closed-circuit principle (active when de-energized)
Precise holding
Low moment of inertia
Optional installation position

Product description

Permanent magnet power off brakes from SG Transmission offer high power density, accuracy and durability within a compact module. Available as a standard option, customised to suit a specific installation position or designed as a completely bespoke solution, our permanent magnet brakes are manufactured with performance at the forefront.

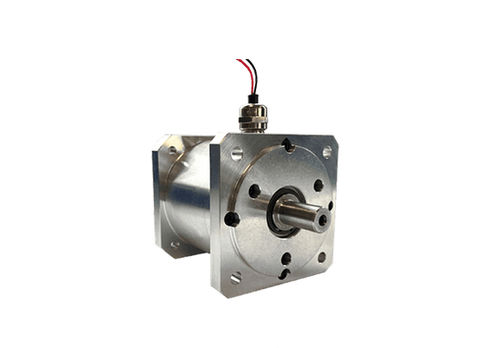

Permanent magnet power off brakes work according to the closed-circuit principle, designed so that when the power is off, the brake is engaged (power-off brake engagement). The permanent magnet brake is available in the same mounting style as a conventional power on brake with flange or spigot mounting options therefore it is easier to incorporate in to existing designs

Permanent magnet brakes are ideal for use in robotics, medical technology and servomotor applications due to their simple structure, performance to size ratio and abrasion resistance.

Parameter Name	Parameter Value
Type	friction
Operation	electromagnetic
Other characteristics	permanent magnet
Torque (Nm)	0.4 - 120
Power (W)	6 - 40
