Friction brake

About

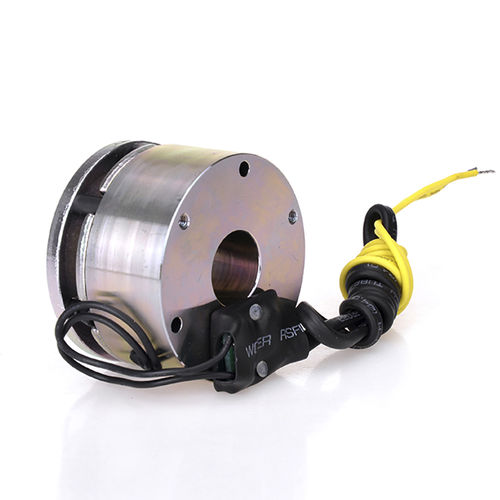

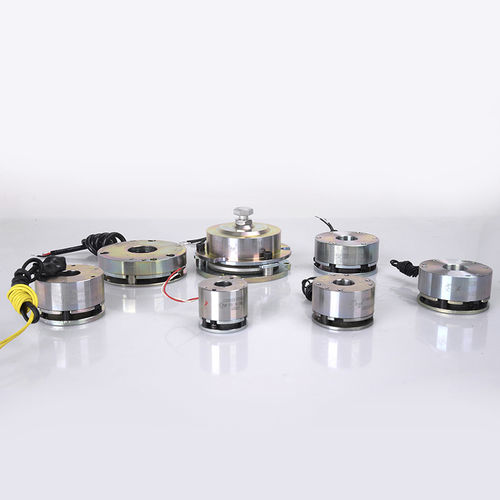

Reach micro motor brake is a miniaturized and compact motor brake with reliable braking force and holding force, which is suitable for various occasions requiring deceleration braking and holding braking.

Working Principle

When an electromagnetic coil is powered by DC voltage, a magnetic field is created. The magnetic force pulls the armature through a small air gap and compresses several springs built into the magnet body. When the armature is pressed against the surface of the magnet, the friction pad attached to the hub is free to rotate.

As power is removed from the magnet, the springs push against the armature. The friction liner is then clamped between the armature and the other friction surface and generates a braking torque. The spline stops rotating, and since the shaft hub is connected to the friction lining by a spline, the shaft also stops rotating

Product Features.
Reliable braking force and holding force: The micro-motor brake uses high-quality friction materials to ensure reliable braking and holding force, which effectively improves the efficiency of the equipment.

Small size and compact structure: The small size and compact structure of the micro-motor brake can meet users' space requirements and improve the overall performance and reliability of the equipment.

Easy installation: The micro-motor brake is simple and easy to install and can be used by simply mounting on the motor without additional installation equipment, which can reduce the installation cost for users.



PARAMETERS

Parameter Name Parameter Value
Type
friction
Operation
electromagnetic
Other characteristics
  • miniature
  • DC voltage
