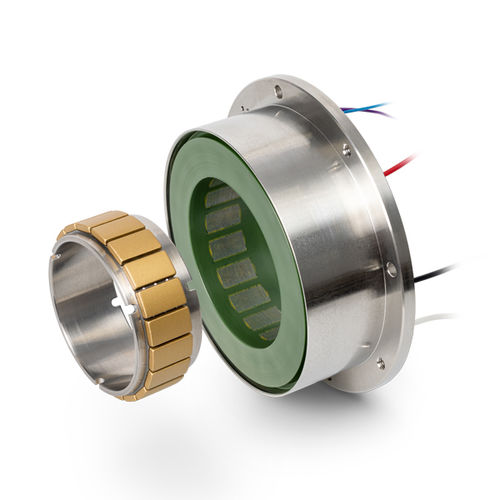

The EC frameless DT motors are BLDC motor kits with internal-rotor technology. The rotor and stator are delivered separately, without bearings or motor shaft, and are connected only during assembly. The flat design, the high torques, and a lot of space for cable glands allow a high level of integration into your application.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	BLDC
Voltage (V)	48 - 48
Configuration	flat frameless
Number of poles	10-pole
Other characteristics	high-torque
Intensity (A)	11.6 - 11.6
Torque (Nm)	1.8 - 1.8
Rotational speed (rpm)	0 - 3280
Diameter (mm)	108 - 108
Operating temperature (°C)	-40 - 155
