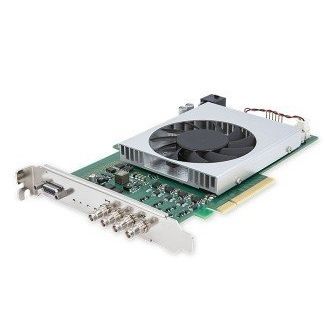

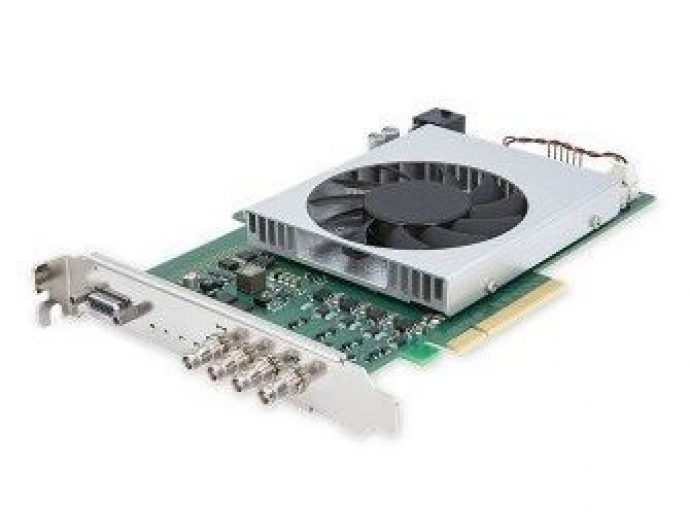

The Basler CXP-12 Interface Card 4C offers 4 channels with a maximum bandwidth of 12.5 Gbps per channel via Micro-BNC (HD BNC) connection.
The Basler CXP-12 Interface Card 4C enables the optimal integration of your Basler boost camera and is controlled by the pylon Camera Software Suite, just like the camera.

With the high-speed CoaXPress 2.0 interface, you can benefit from the maximum performance of modern image sensors and achieve the best results in your applications. The single and multi-channel boards are a perfect fit for our boost cameras, reducing integration effort and costs.

They are ideal for multi-camera systems with high bandwidth, low latency and long cables, and for industries and applications with different camera requirements, e.g. semiconductor and solar industry, display inspection (FPD), print inspection, food inspection and medical technology.

• Interface cards with 1, 2 or 4 channels
• Basler CXP-12 camera and interface card, accessories and software from a single source – for optimal system design
• Easy installation (plug-and-play) of camera and board through GenTL and the pylon Camera Software Suite (SDK)
• High scaling effects, enabling exploitation of the maximum performance of the latest CMOS sensors
• Precise camera synchronization at lowest latencies
• Reduced system complexity
• Latest FPGA technology paired with powerful CoaXPress 2.0 interface
• Very low CPU load for data transfer and storage
• Interface cards also included in CXP-12 evaluation kit, for optimal evaluation / design-in phase
• Attractive price packages for camera and board

Parameter Name	Parameter Value
Bus standard	FPGA
Applications	industrial
Other characteristics	multi-channel
