Pressure on price and quality continue to rise. The need to monitor even the simplest manufacturing and assembly process is increasingly common. With 100% monitoring of force/ time curves or force displacement/time curves, the Force- Master satisfies all requirements for ensuring the reliability of even simple press-fit processes. Thanks to its ultra-simple, single-button operation and intelligent auto-configuration, even semi-skilled staff can set up the equipment safely and quickly. "Card & Go" is the smart system that uses master, tool and PLC smart cards to make equipment settings, inhibit unauthorized changes and to trigger actions in sequence with the production process.

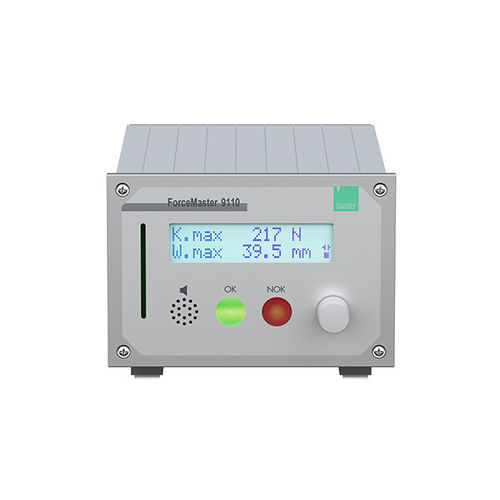

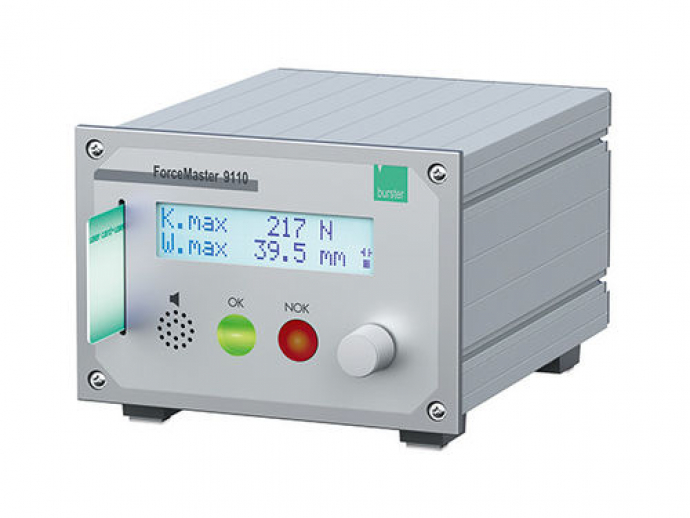

The ForceMaster 9110 has been developed specifically for monitoring manual lever presses. Simple manual workstations can be monitored extremely efficiently using the ForceMaster. Easy control functions that used to require an additional PLC can now be performed reliably with the ForceMaster. Tools can be changed quickly and easily using tool cards. The ForceMaster is used for e.g for
Pressing ball bearings:
Compressing powders
Press-fitting pinion gears

The ForceMaster has a multi-voltage power supply. Excitation of the load cell and displacement sensor is provided by internal voltage-conditioning circuits. Sensor identification is built into the sensor plug, allowing sensors to be connected easily with no further configuration needed.
The integral auto-configuration tool uses a GOOD component to train the ForceMaster with the measurement curve and automatically set the evaluation elements. The user can make any further fine-tuning and adjustments to these settings manually if required.

Parameter Name	Parameter Value
Type	force linear displacement
Applications	measurement for presses
Interface	USB RS-232
Other characteristics	smart
