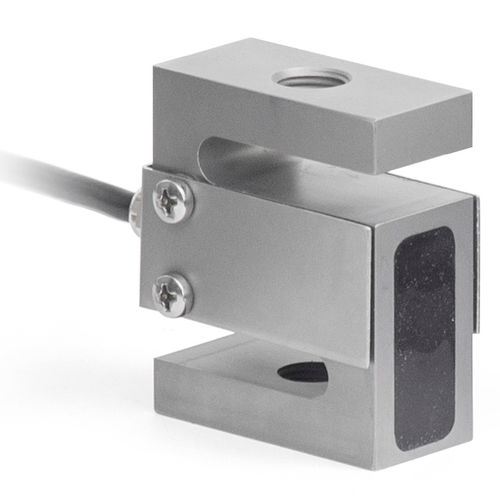

Series R01 rugged smart sensors are designed for measuring tension and compression force, with applications in virtually every industry. Durable S-Beam design with threaded holes on two sides allows for many configurations.

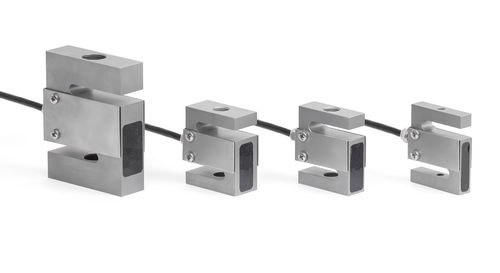

Capacities available from 50 to 10,000 lbF [250 N to 50 kN]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test™ technology.

The sensor can be integrated into an existing system or mounted to a Mark-10 test stand.

Add suffix -1 to the model number when using an R01 sensor with any of the following test stands

Features and specifications
•Member of the Plug & Test™ family of interchangeable sensors and indicators
•Measures tensile and compressive forces
•NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
•Accuracy: ± 0.15% of full scale + indicator
•Weight: From 1.9 to 3 lb (0.9 to 1.4 kg)
•Warranty: 3 years

Parameter Name	Parameter Value
Measured value	force
