FM transceiver module RC-CC1310-XXX CC1310 based

FM transceiver module RC-CC1310-XXX CC1310 based

FM transceiver module RC-CC1310-XXX CC1310 based

About


Ultra Low Power sub 1GHz Multichannels Radio Transceiver
The RC-CC1310-XXX module is based on Texas Instruments CC1310F128 component. This device combines a flexible, very low power RF transceiver with a powerful 48 MHz Cortex M3 microcontroller in a platform supporting multiple physical layers and RF standard.
N.3 Versions available :

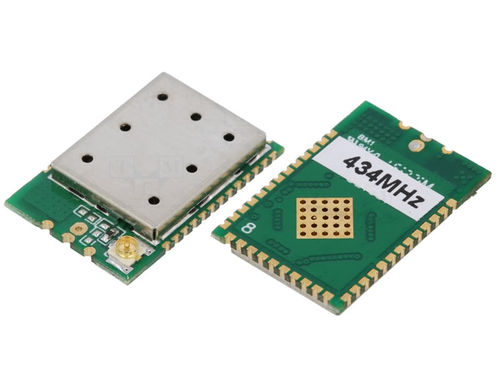

- RC-CC1310-434 Freq. : 433MHz

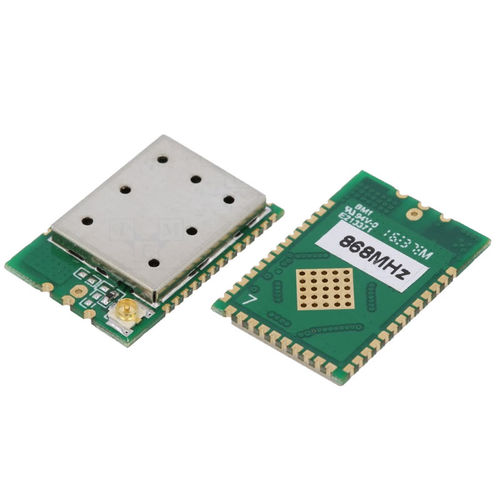

- RC-CC1310-868 Freq. : 868MHz (CE RED Certified)
- RC-CC1310-915 Freq. : 915MHz (FCC Certified).

Sub-1Ghz technology is becoming one of the chief driving forces behind the Internet of Things (Iot) the main benefits of this technology are:

-The low power consumption has always been the predominant feature of the sub 1GHz applications, with new technologies we consumption in sleep mode of less than 1 uA. The consumption of this device is 5.5mA when receiving and 23.5mA when transmitting at +14dBm (13.4mA at +10dBm) in sleep mode the consumption is 0.6µA (microamps).

-The Long Range has become a reality because with new technology you can reach distances of several kilometers in addition, by occupyng the ISM bands in the wireless spectrum belo 1 GHz, this communication avoids the much more crowded band at 2.4 GHZ, where Wi-Fi, Bluetooth, ZigBee and other wireless protocols operate.

The sensitivity parameter is -110dBm at data rates of 50 kbps and down to -124dBm when the data rate is 0.625kbps.Interference from other wireless communications can be overcome with 90dB of blocking. The RF output power levels can reach up to +14dBm. All this ensure a robust signaling for long range communications.

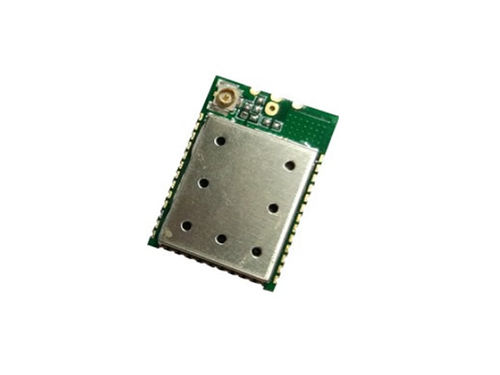

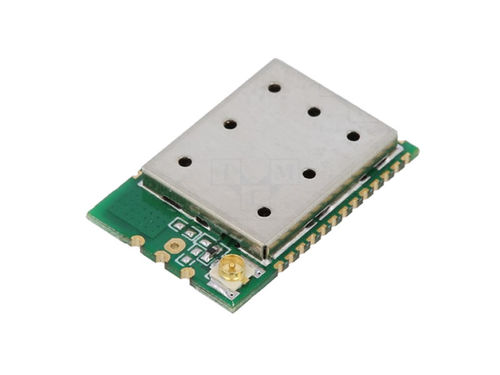

Ready for use Small Size for SMD mounting (Dimensions 15x 22mm) - Metal shield



PARAMETERS

Parameter Name Parameter Value
Network
  • FM
  • FSK
  • ISM band
Applications
  • data transmission
  • for wireless data transmitters
Number of channels
multi-channel
Other characteristics
  • compact
  • long-range
