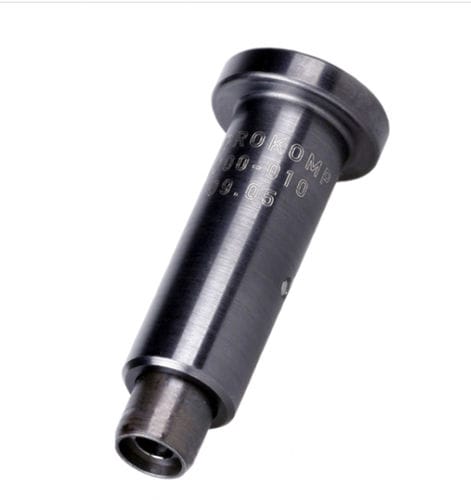

Coupling elements of HYDROKOMP are made of stainless materials. This enables the elements to be used for all fluids and gases that are not aggressive. Special designs eg. for water steam or other media are available on request. HYDROKOMP offers coupling elements for two different operating modes depressurized coupling or pressurized coupling. The elements for depressurized coupling can be coupled pressurized up to 25 bar, if the specified volume flow is not be exceeded. When using higher operating pressure there ockures a risk of demaging the soft seal in the check valve as the result of high flow velocities of the fluid. This means for coupling of air up to 10 bar there should be always used the coupling elements for depressurized coupling. This also applies when the coupling process is initiated pressurized. The elements which can be coupled pressurized may be coupled up to the maximum specified operating pressure on one side and / or on both sides.

The built-in elements are particularly suitable for installation in plates of multiple coupling systems. Threaded body elements can be directly scewed into the fixture body, for example of a tool change system. There, they are ideal suitable as an interface for medium transfer.

Special features:
stainless materials and replaceable system seals for long service life
ideal for space-saving installation in individual receiving housings
transmission of liquid and gaseous mediums and vacuum
pressurized or depressurized coupling
various with four nominal diameters
standard elements and special designs available

Parameter Name	Parameter Value
Type	fluid
Product applications	transmission for water air
Other characteristics	pressurized
