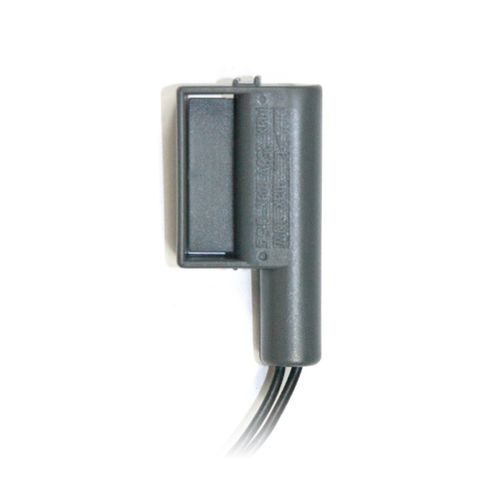

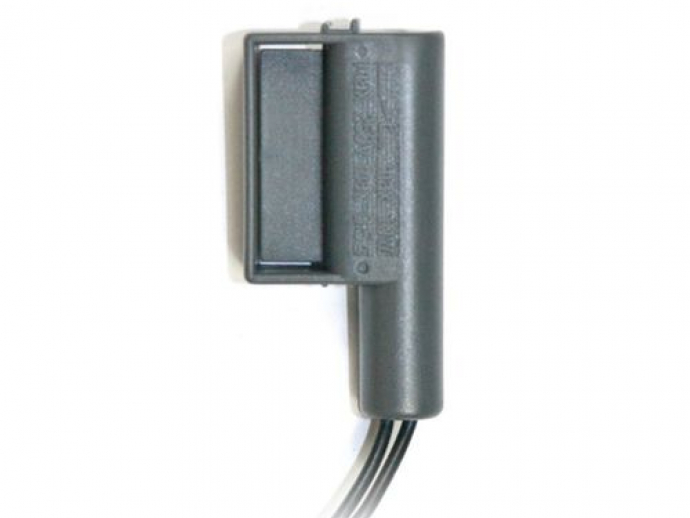

The airflow monitor (NC/NO) is designed to indicate the loss of air movement of a fan or filter
fan. The contact detects the loss of air movement caused by fan failure or blocked filter media
regardless of the direction of air. Its simple mechanical operation makes it a viable alternative to electronic monitoring systems.

Features:

1.Mechanical switch contact
2.Versatile fields of application
3.Small size
4.Easy to connect

Application:

The LCF 013 is used as a signal contact to monitor fans or filter fans in stationary, self-contained Protection Class I enclosures. It can be connected to monitoring systems with remote control or can directly switch alarm devices, such as LED’s or signal lamps. Loads with capacities exceeding the indicated switching capacity must be switched via a relay, e.g. our electronic relay SM 010. The airflow monitor with NC contact closes upon loss of air movement, i.e. it indicates fan failure (e.g. red signal lamp). The NO contact closes when fan is in operation and serves as optical function display (e.g. green signal lamp).

Parameter Name	Parameter Value
Type	flow
Applications	air movement for remote control
Other characteristics	stationary
