About
Battery powered, multi Applications data logger
Wireless setting by radio/USB via laptop
Communication (selon modèle) : Radio + 1 optional communication card to choose from either 2G/4G ( LTE-M / NB-IoT)
Memory : 500 000 measures
Rugged & compact, sealing IP68 (Tested at 1 bar during 30 days)
Access point HF / Modbus / GPRS
1x power supply input (5V…30V), 2x digital inputs : Contact or counter 100 Hz,
1x Modbus input or output
1x power supply output 5V…18V (for external sensor), 1x open drain output
Remotely access data with Ijitrack web platform & Wiji mobile app
The new generation LOG04V4 logger gains in versatility, its autonomy is also increased, data sending are more secured with the possibility to encrypt them in FTPs. The radio configuration on-site makes it easy to install with more security for the user and time saving. In addition, it integrates communication options such as GSM-GPRS (2G, 4G), depending on the model.
The LOG04 data logger is suitable for several applications such as :
– Flow measurement (VLI and KDO submerged velocity height sensor, UB-V submerged Doppler velocity sensor, Sommer non-contact velocity and height sensor)
– Storm overflow (LSC overflow logger and CSCV3 wired overflow sensor)
– Lift stations (current clamps F0A00066 and F0A00046)
– Physico-chemical probes for water quality monitoring (Conductivity, Dissolved Oxygen, Turbidity, pH, temperature sensor range)
– Rain gauge (RG20 and RG25)

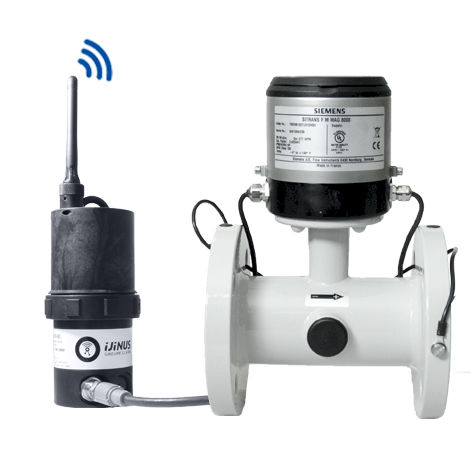

– Connection to electromagnetic flow meters via Modbus
– Fast counting on water meters using a pulse unit
– …
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
flow, pulse, conductivity, pH, overflow
|
| Connector type |
USB, wireless, GSM / GPRS, RFID, Modbus
|
| Display |
without display
|
| Applications |
|
| Other characteristics |
|
