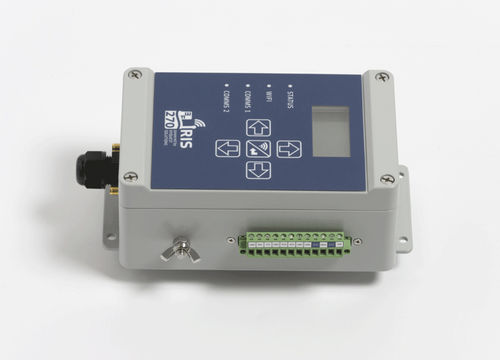

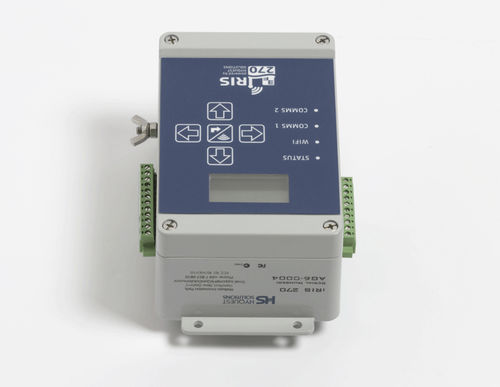

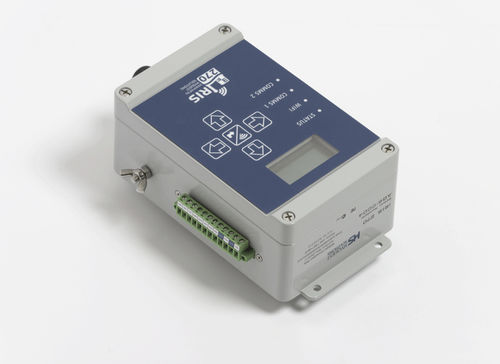

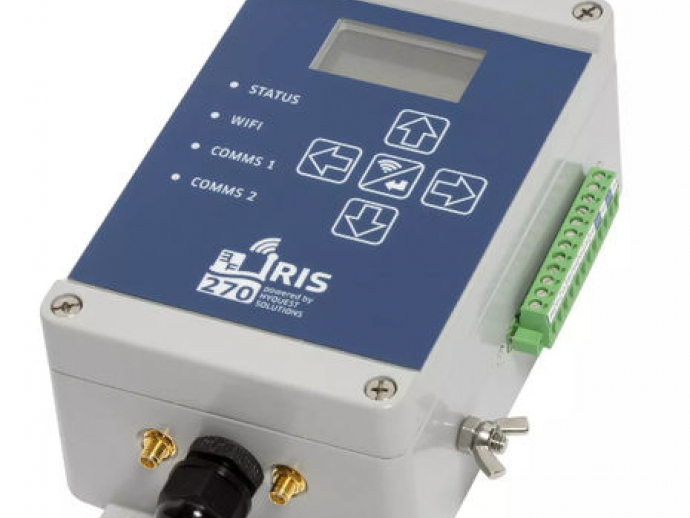

The iRIS 270 is the perfect marriage of the proven iRIS design legacy with a future-proof architecture. It is compact, cost effective, ruggedized, IP-capable and easily configured - and due to its dual telemetry slots the iRIS 270 extends the telemetry options and the range of pluggable devices.

The dual telemetry slots support wireless 4G/3G modem, Iridium satellite, ethernet, and RS232/RS485. They can be used to provide for communication redundancy: for example two cellular modules each with a different SIM card from independent ISP providers or a communications device connected via RS232/RS485 paired with an Iridium satellite module.

The iRIS 270’s WiFi hotspot enables access to the device wirelessly using HyQuest Solution’s free-of-charge iLink software (Windows). With a max. range of 80 m in clear line of sight (and a strong signal from the connected device), the user can edit settings while reading the staff gauge on the riverbank, doing a stream flow gauging, or sitting in his car in rainy conditions. iLink helps confi guring the logger, check-ing settings and calibrations for QA/QC, performing real-time diagnostics to resolve technical issues, and downloading data. The optional HydroTel™ software can be used for remote confi guration and data down-loading.

iRIS 270 in short

Dual-comms option
Modem: built in 4G with 3G fallback
Aluminium die-cast housing
IP66
Low power consumption
Battery operated and solar chargeable
Up to 50 virtual sensors
Non-volatile memory
Local wireless configuration and data download

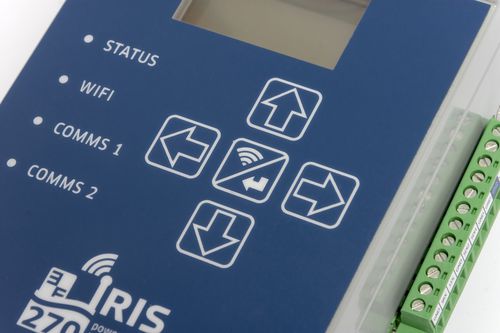

Small graphics LCD display and 5 button keypad for viewing general and sensor information, running totals, etc.

Parameter Name	Parameter Value
Measured quantity	flow, power
Connector type	wireless, WiFi, Ethernet
Display	with screen
Applications	for battery
Other characteristics	compact rugged
Memory capacity	32 unit
