Portable flow logger for RAVEN-EYE or BELUGA

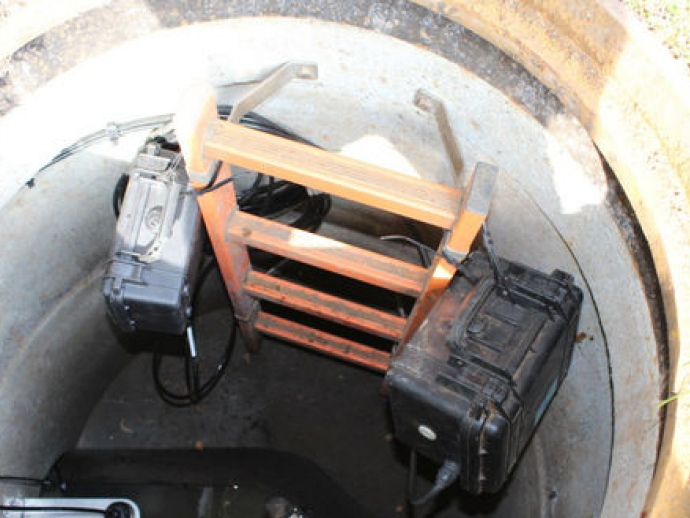

The IFQ LOGGERTM is a portable converter and logger for Flow-Tronic flow sensors. It disposes of one RS485 digital serial communication port with specific communication protocols for RAVEN-EYE® or BELUGATM flow sensors and one 4-20 mA input for external level.
The IFQ LOGGERTM combines high performance with low power requirements. The unit needs 12 VDC nominal power supply either provided from an optional battery pack or solar panels.
The IFQ LOGGERTM keeps the same easy configuration enhanced by the IFQ MONITORTM and stays in line with the flexible and modular architecture launched by the RAVEN-EYE®. All flow sensors are field interchangeable.
A dry contact output is available for users needing an output for samplers or any other instrument.
1 / 5
KEY FEATURES:
1 x RS485 digital sensor interface for velocity (RAVEN-EYE® or BELUGATM)
1 x 4-20 mA analog input for level sensor
7 position sealed membrane keypad
Configuration of level offset, units, measuring interval and languages through keypad
Available languages: EN, DE, FR, …
Wakup and real-time function available
2 Gb memory (SD card)
18 datalog channels
Power supply : 9 to 18 VDC (battery available as an option)
Enclosure : PPC with protection IP67
Optional contact output for sampler or other (coming soon)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
flow, level
|
| Display |
without display
|
| Other characteristics |
|
