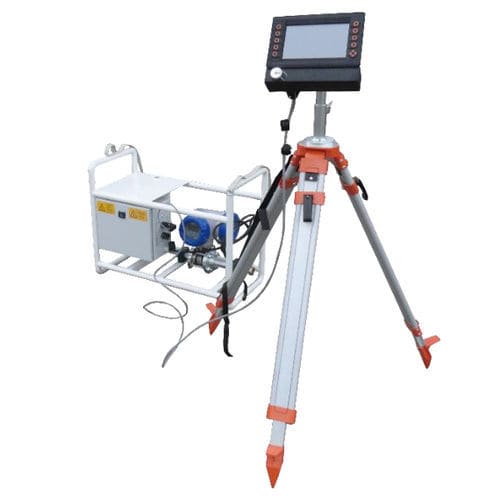

Technical Data

• Nominal diameter DN 25 mm
• Pressure max. 100 bar
• Recommended / flow rate max. 5 – 150/ 250 l/min
• Admissible temperature range -10 bis +50 C°
• Protection class IP 65
• Recorded data Flow rate Process, maximum value, average
• Recorded data Quantity Process, total quantity
• Recorded data Grouting pressure Process, maximum value, average
• Recorded data Grouting duration Date, start time, stop time, duration, pause time
• Recorded data Bore hole number
• Input construction site data (comments) Name of construction site, section, site supervisor, client, device alphanumeric
• Pressure connection 1“ IG DN 25 BSPP alternatively SAE-Flange 1“ IG 6000psi
• USB 2.0 connector
• Power connection Safety plug CEE 7/4
• Voltage 230 V; 50 Hz
• Dimensions (with/without tripod) 1020 x 350 x 650 ; 810 x 350 x 550 mm ( L x W x H)
• Weight (with/without tripod) approx. 50 / 46 kg

Application area:
• Recording, storage and analyzing grouting data during grouting and injection work.

Parameter Name	Parameter Value
Measured quantity	temperature, pressure, flow
Connector type	USB
Display	with screen
Applications	for mining applications
Other characteristics	portable IP65
