About
The latest technology of HD imager + freely interchangeable probes
Equipped with the latest technology of high-definition video imaging components, resolution up to 1280x720, available pixels up to 921,600.00,high-intensity power light source and excellent visual processor, so as to provide you with clearer still pictures and videos to help operators determine defects faster and more accurately.
Advanced probe freely interchangeable technology

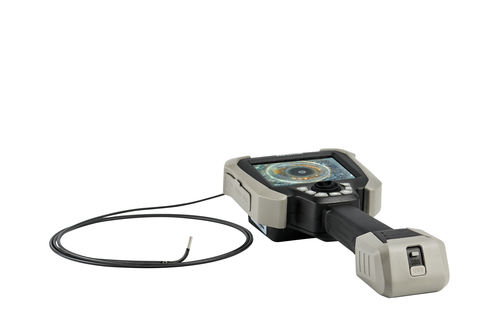

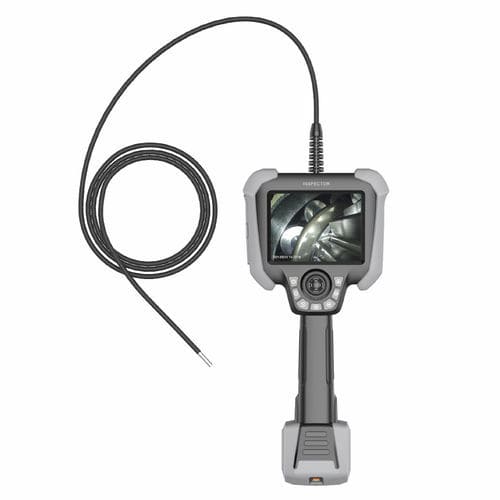

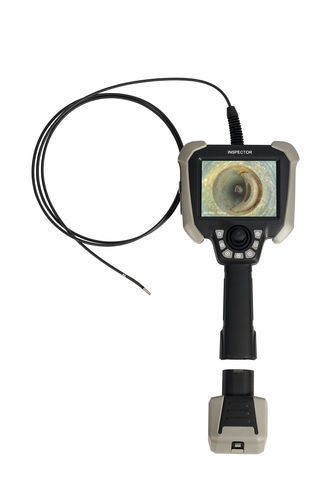

The probe can be replaced quickly according to different working conditions. The diameter of the probe are available of 1.0mm,1.6mm,1.8mm,2.4mm,2.8mm, 4mm,6.1mm and 8.4mm. Different working lengths are available from 1M to 15M. Save equipment purchase costs and improve after-sales service efficiency
Powerful and portable

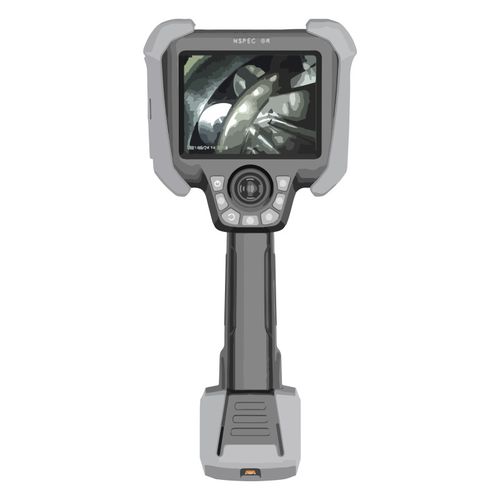

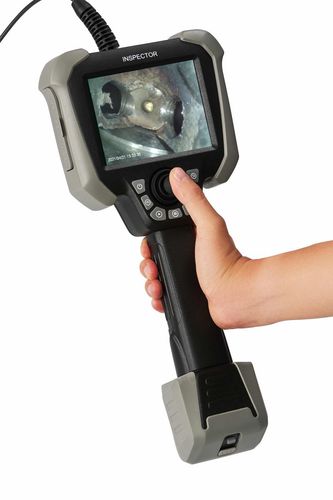

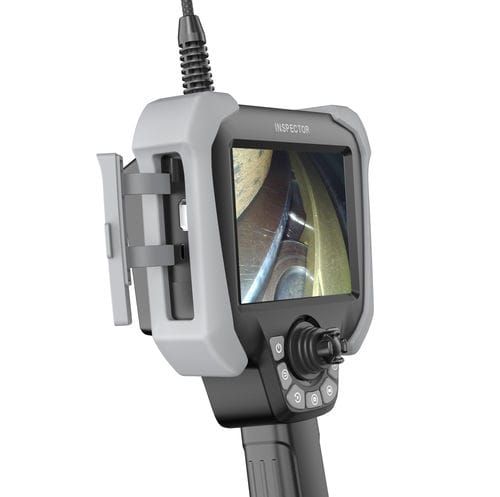

Inspector S has built-in 5-inch IPS wide-angle high-definition LCD screen, resolution up to XVGA as 1024x768, the system adopts durable and ergonomically designed integrated handheld operation.
High-Power LED rear design
The use of high-power LED lighting source design guarantees the lighting requirements for visual inspection in large spaces. For example, inside the gearbox of a large wind turbine or inside a gas turbine.
Flexible One-finger articulation technology
The latest One-finger articulation technology is easy to operate while ensuring precise control of the guidance. Compared with the traditional articulation technology, it is more accurate and stable.
Excellent depth of field Lens design
The industry’s leading customized depth of field design can be tailored to different depth of field according to specific application requirements.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Construction |
flexible
|
| Applications |
|
| Other characteristics |
|
| Diameter (mm) |
0.9 - 8.4
|
| Cable length |
Max.: 30 m (98'05")Min.: 1 m (3'03")
|
