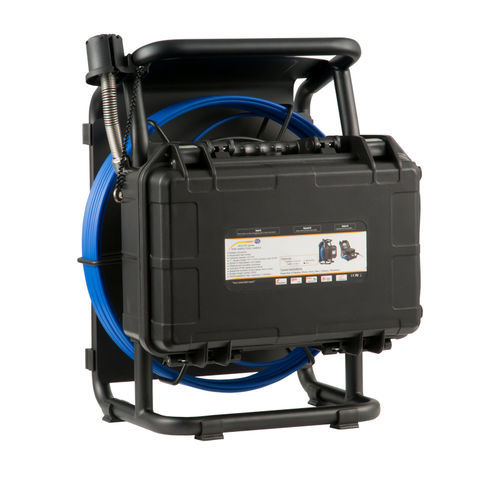

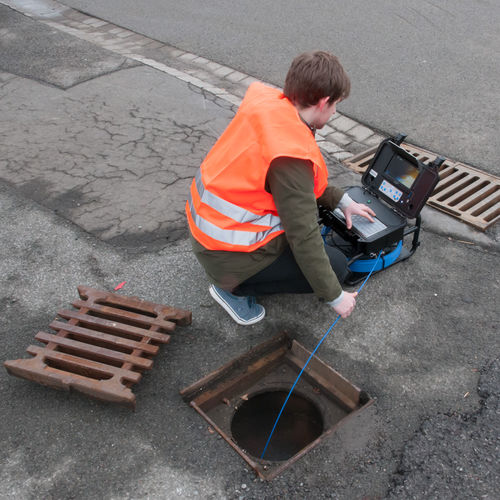

The inspection camera of the PCE-PIC series is an ideal tool for any service technician who needs to visually inspect pipes and ducts. The inspection camera has a 23 mm / 0.9 in camera head, which is attached to a fiberglass push cable. The inspection camera is optimally suited for pipes and ducts DN 40 ... 150 mm / 1.6 ... 5.9 in. The camera of the inspection camera is waterproof up to 20 m / 66 ft. To facilitate the search for damaged areas on canals and pipes, the inspection camera has an electronic meter counter. Recorded pictures and videos can be saved on an SD memory card via the inspection camera.


Cable diameter / head diameter23 mm / 0.9 in
Cable lengthPCE-PIC 40: 40 m / 131 ft

Sight depth20 ... 100 cm
Perspective120°
Lighting12 x LED (dimmable)
White balanceAutomatically
Image sensor1/3" Sony CCD
720 x 576 pixels
Display7" LC display
InterfaceUSB 2.0
Memory optionVideo, photo and sound
Image memorySD card up to 32 GB
Video output formatPAL 720 x 576 pixels
NTSC 720 x 488 pixels
Menu navigationMultilingual:
German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian
Length measurement0 ... 40 m / 0 ... 131 ft
Data entryBy keyboard possible
Operating conditions-10 ... 50°C / 14 ... 122°F, 30 ... 90% rh
Storage conditions-20 ... 60°C / -4 ... 140°F, 30 ... 90% rh
Power supplyPower supply 110V ... 240V AC / 12V / 1.2 A DC
Li-Ion battery 7.4 / 5400-mAh
Protection classDisplay: IP66
Camera head: waterproof up to 20 m / 66 ft
DimensionsComplete: 55 x 43.5 x 34.5 cm
Camera head: 23 x 45 mm / 0.9 x 1.8 in (total length: 150 mm / 5.9 in)
WeightAbout 13 kg / 28.7 lbs

Parameter Name	Parameter Value
Construction	flexible
Applications	industrial for pipe inspection LED
Other characteristics	portable LCD display with memory card waterproof USB
Diameter (mm)	23 - 23
Cable length	40 m (131'02")
