Video imaging components

Equipped with the latest technology of high-definition video imaging components, resolution up to 1280x720, available pixels up to 921,600.00,high-intensity power light source and excellent visual processor, so as to provide you with clearer still pictures and videos to help operators determine defects faster and more accurately.

Advanced probe freely interchangeable technology
The probe can be replaced quickly according to different working conditions. The diameter of the probe are available of 4mm and 6mm. Different working lengths are available from 1M to 3M. Save equipment purchase costs and improve after-sales service efficiency

Powerful and portable

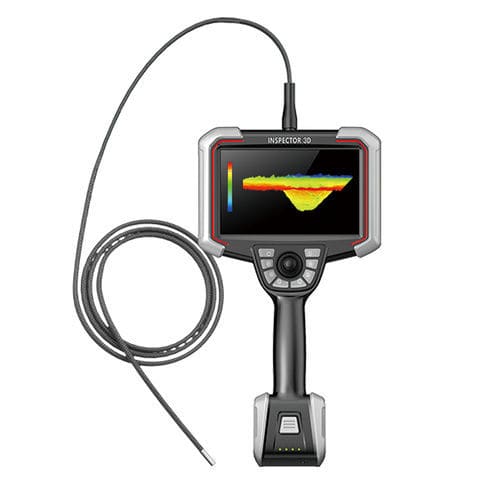

Inspector 3D has built-in Intel high-performance processor, large-capacity high-speed memory, 7-inch touch screen IPS wide-angle high-definition LCD screen, resolution up to XVGA as 1920x1200, which can easily handle various complex tasks, the system adopts durable and ergonomically designed integrated handheld operation. The overall easy operation is convenient. Store and carry.

3D measurement with 3D point cloud
More 3D measurement options for crack estimation: length/Point to line/Depth/Area/Multi-segment/Depth profile/Depth map/3D point cloud

Parameter Name	Parameter Value
Construction	flexible
Applications	industrial for pipe inspection for automobiles for pipes for remote visual inspection engine for boilers for turbine engine inspection for machines welding
Other characteristics	with 4-way rotation LCD display portable with memory card infrared with WIFI kit waterproof articulated with joystick long-distance interchangeable probe small-diameter UV
Diameter (mm)	4 - 6
Cable length	Max.: 3 m (9'10")Min.: 1 m (3'03")
