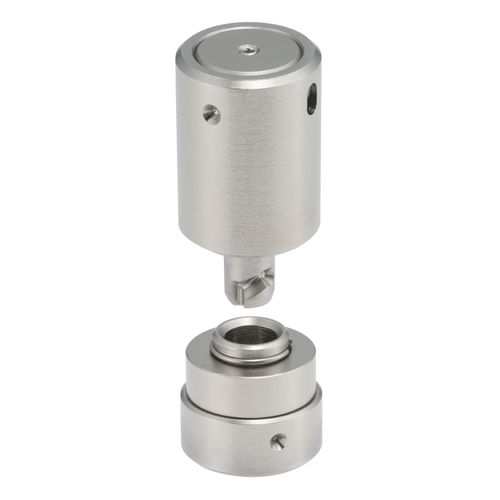

HEAVY DUTY SHAFT COUPLING CLAMP

One-Touch Fasteners are quick release fasteners for frequent changeover of machinery or fixture.
Quick and easy tool-less clamping reduces setup time in changeover.
IMAO's quick release fasteners are available in various clamping styles, quarter turn fasteners, ball locking fasteners and pin holding fasteners.

- Feature -
Higher clamping force
Multipurpose coupling element
Easy to clamp/unclamp by turning 90°

- Technical Information -
Clamping force: 400N
Holding Force: 400N
Shear strength: 4800N
Tensile strength: 1600N
Heat-resistant Temperature: 180 degrees celsius

- Materials -
Body: S45C steel (electroless nickel plated)
Shank: SKS3 steel (Electroless nickel plated, Quenched, and tempered)
Pin: SUS304 stainless steel
Spring: SWOSC-V steel

Parameter Name	Parameter Value
Type	flexible
Product applications	for shafts for spindles industrial
Other characteristics	heavy-duty compact disassemblable high load capacity
Installation system	shaft sleeve
