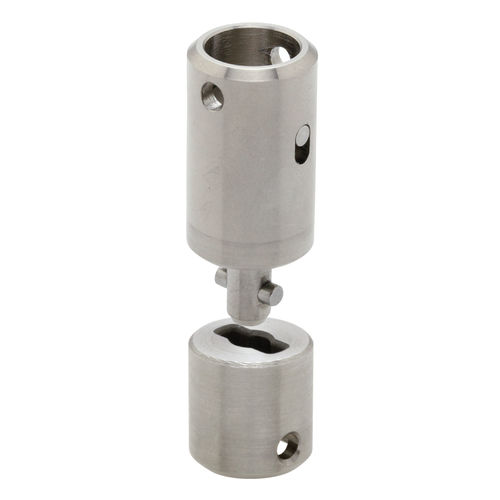

SHAFT COUPLING CLAMP
One-Touch Fasteners are quick release fasteners for frequent changeover of machinery or fixture.
Quick and easy tool-less clamping reduces setup time in changeover.
IMAO's quick release fasteners are available in various clamping styles, quarter turn fasteners, ball locking fasteners and pin holding fasteners.
- Feature -

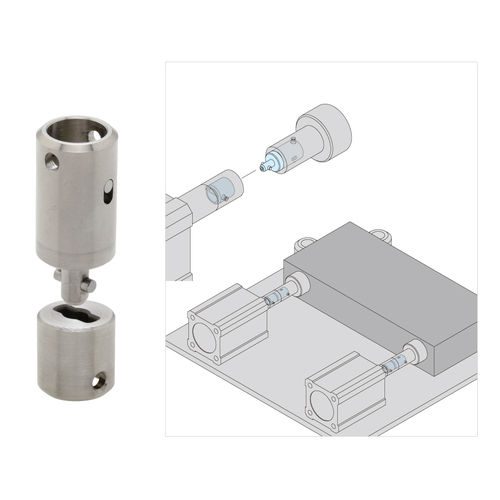

Multipurpose coupling element
Cam & spring clamping
Easy to clamp/unclamp by turning 90°
- Technical Information -
Clamping force: 90N
Holding Force: 90N
Shear strength: 1800N
Tensile strength: 1200N
Heat-resistant Temperature: 180 degrees Celsius
- Materials -
Body / Shank; S45C steel (electroless nickel plated)
Pin: SUS304 stainless steel
Spring: SWOSC-V steel
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
flexible
|
| Product applications |
|
| Other characteristics |
compact
|
| Installation system |
shaft sleeve
|
