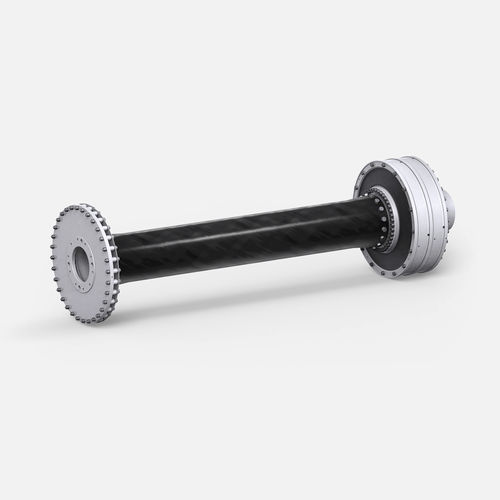

The VULKAN Integrated Shaft Coupling (ISC) combines in a unique way the well proven RATO DS torsional rubber coupling with a double cardanic floating shaft. The working principle of the ISC is based on the fact that the flexible rubber element of the RATO DS coupling transmits the torque primarily by shear stresses which have a pre-dominant radial/circumferential component.

Benefits
Compared to pure torsional or conventional misalignment couplings the Integrated Shaft Coupling (ISC) offers the following advantages:
Significant reduction of parts in case of the bearing less design
Advantageous weight saving of the entire coupling including the intermediate shaft
Up to seven meters long Composite intermediate shaft
High misalignment capacity, low reaction forces
No noise transmission path through metallic parts in case of bearing leass design
Extended torsional vibration tuning capabilities

Parameter Name	Parameter Value
Type	flexible
Product applications	shaft transmission for mechanical power transmission
Installation system	shaft sleeve
Torque (Nm)	0 - 0
Rotational speed (rpm)	1040 - 2100
