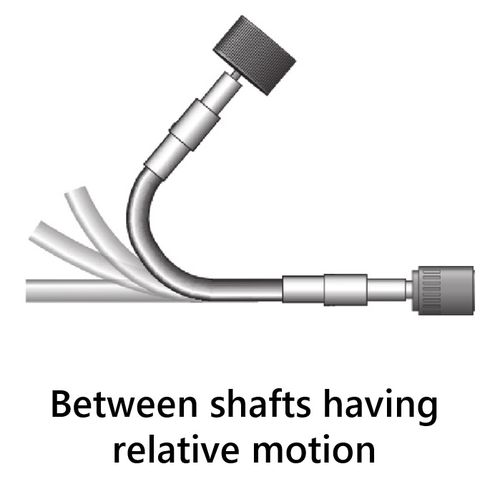

Flexible Shaft offers high torque force (Max. Torque 6Nm) and excellent rotational performance during high-speed rotation. Designed for transmitting power or rotary motion through obstructed or curved path, either between fixed shafts or shafts having relative motion.
It can solve problems of misalignment, absorb and isolate vibration, and simplify power transmission designs and applications.

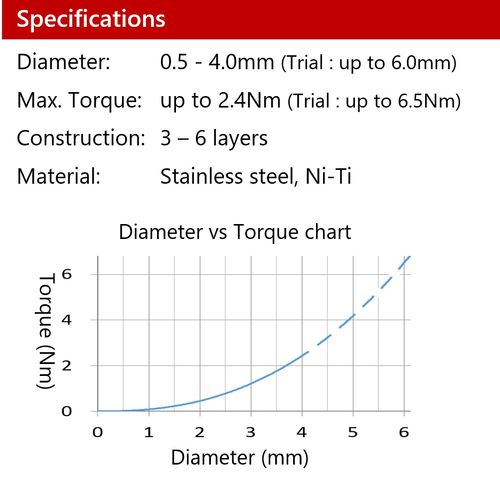

--- specifications ---
Diameter: 0.5 - 4.0mm (Trial: up to 6.0mm)
Max.Torque: up to 2.4Nm (Trial: up to 6.5Nm)
Construction: 3 – 6 layers
Material: Stainless steel, Ni-Ti

*Please note that we don't have off-the-shelf products, but all of our products are made to order. So it takes $1500 minimum.
If you are looking at just a one-off part, this might be cost-prohibitive.

Parameter Name	Parameter Value
Material	wire
Type	flexible
Product applications	transmission
