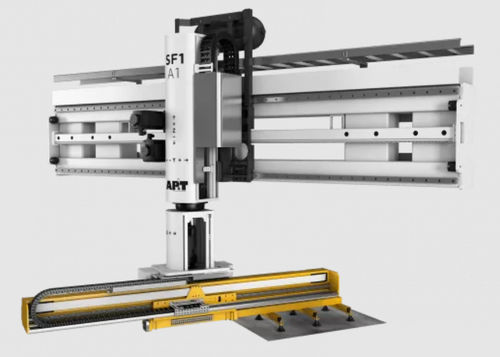

AP&T Group is the world leader in modular feeder automation, and the company builds approximately 300 units a year. The systems are high speed, flexible and easy to maintain and upgrade. The units are completely standardized and meet all applicable industry standards such as CE/UL/CSA, for example.

Standard stroke length
X: 2000 mm
Y: Option
Z: 400 mm
A: Option (360°)

Max. stroke length
X: 4600 mm in increments of 200 mm
Y: 10000 mm in increments of 100 mm
Z: 1000 mm in increments of 200 mm

Max. gripper length: 1500 mm

Max. handled weight: 60 kg
(a higher load can be handled with a shorter gripper length)

Parameter Name	Parameter Value
Type	flexible gripper
Operating mode	modular
Product applications	industry
