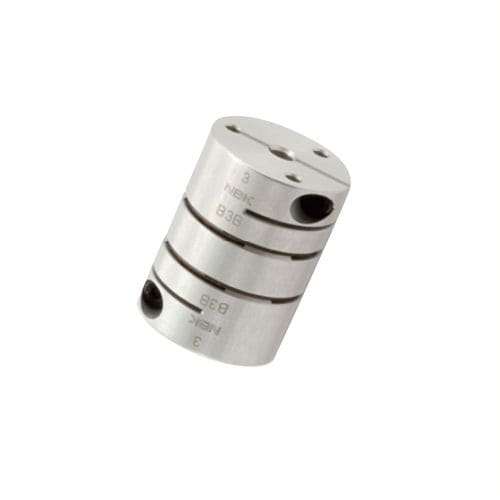

XHW series is disk type flexible coupling.
High-torque specification with rated torque 1.5 times higher than conventional products.
This is the most appropriate for a servomotor with instantaneous max. torque of 350%.
The stainless steel disk allows eccentricity, angular alignment, and end-play.

XHW-C (clamping type)
XHW-C-L (long, clamping type)
XHW-AC (adapter for 1/10 taper shaft & clamping type)
XHS-C (short, clamping type)

Optional Services
-Couplings Bore and Keyway Additional Modification Service
-Coupling Stainless Steel Screw Alteration Service

Application
Actuator / Surface-mount machine / High precision XY stage / Index table

Please feel free to contact us for a quotation.

Parameter Name	Parameter Value
Type	flexible disc
Product applications	for shafts for mechanical power transmission clamp for electric motors for stepper motors for servo motors for robots for robotics
Other characteristics	zero-backlash torque compact misalignment correction high-performance anti-vibration miniature high-speed taper sleeve with high torsional flexibility custom with clamp high-torque
Installation system	sleeve
Torque (Nm)	0.6 - 200
Rotational speed (rpm)	6000 - 42000
