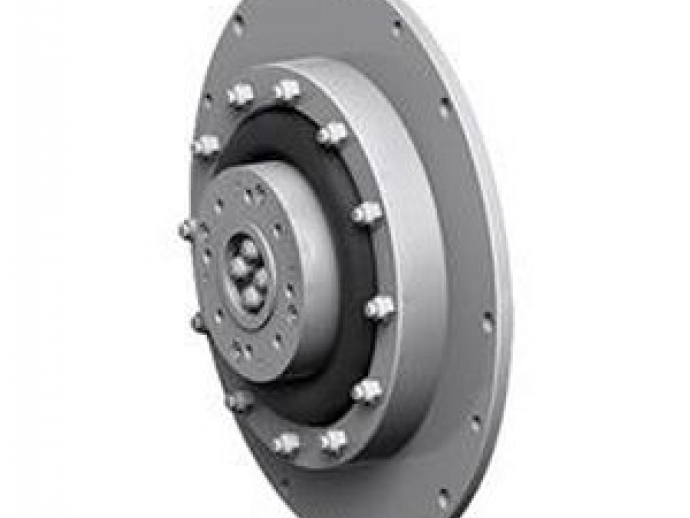

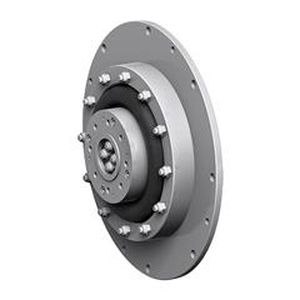

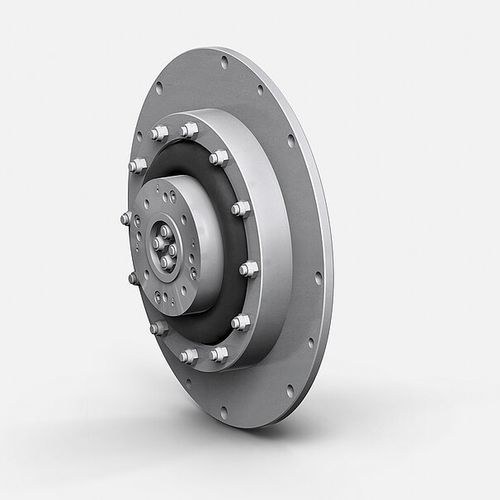

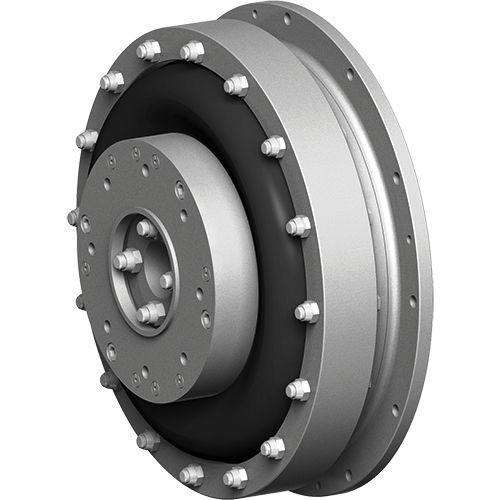

When the driven machine is not in line with the prime mover or when long distances have to be bridged, cardan shafts are used. With a diesel engine as the prime mover, a highly flexible coupling will be required for shifting resonances and damping of torsional vibration. This coupling protects the cardan shaft and the driven machinery from inadmissible vibratory loads. The highly flexible VULKARDAN P couplings have been specifically developed for application in conjunction with cardan shafts. The main components of the VULKARDAN P coupling are the highly flexible element and the inner and outer couplings parts supported against each other. The elements have a high torsional flexibility and good damping properties. On to the support additional damping is achieved

Benefits
Customised for use as a clutch in Cardan shafts
The short and compact design results in only minor loads on the crankshaft even with large bending angles of the Cardan shafts
The coupling elements have high torsional elasticity and good damping characteristics for maximum protection of the System

Parameter Name	Parameter Value
Type	flexible torsionally flexible
Product applications	shafts for pumps engine machines parts
Other characteristics	compact large
Installation system	flange
Torque (Nm)	500 - 500 320 - 320
Rotational speed (rpm)	1450 - 4100
