Couplings are used to attach the encoder shaft to the machines’ moving shaft. A wide variety of flexible Disc Couplings, Bellow Couplings and Jaw couplings with various combinations from diameter 6mm to 10mm are available.

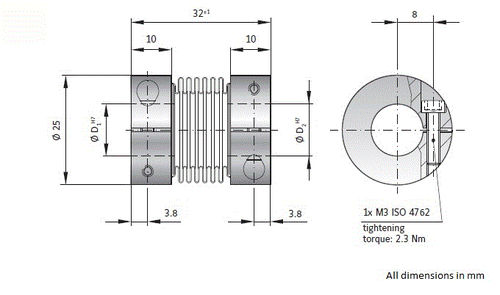

Bellow Coupling

Bellow Couplings are ideally used in applications where the coupling may need to withstand high torsion stiffness and/or a low mass moment of inertia. These couplings also behave well with axial, radial and angular displacements because of their flexible design.

Parameter Name	Parameter Value
Type	flexible jaw disc
Product applications	shaft
Other characteristics	torque
Installation system	flange
Torque (Nm)	2.3 - 2.3
Rotational speed (rpm)	12000 - 12000
