Our extensive product portfolio, including a wide range of series and variants, offers you complete freedom to design a shaft connection that fits your needs. It also gives you the certainty of selecting the ideal solution, even for the most difficult drive applications.

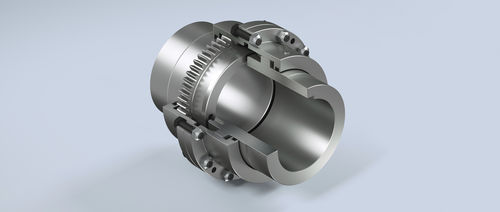

The gear couplings in the SB, SBk, and LBk series stand out for a high power density and a long service life. We employ a reliable oil or grease lubrication system for each series. They are suitable as torsionally rigid shaft connections for a positive torque transmission and provide compensation for axial, radial, and angular shaft misalignments. Gear couplings are truly all-purpose and are used in numerous different applications.

A wide range of combinations, for example with HYGUARD® safety couplings, brake disks, spacers, intermediate shafts, or other auxiliary equipment such as switchgears for versions in our portfolio that can be disengaged during standstill enable these couplings to be used for various applications.

Features

SB Series
Split housing with bolted covers
Elaborate lid design for high misalignment compensation capability
Misalignment ± 1.5° for each half of the coupling, up to ± 3° in special version
Lubrication: Filled with choice of oil or grease
Low strain on sealing rings thanks to optimal arrangement in housing lid
Large lubrication chamber with secured contents
Lubrication is maintained even if seal is damaged
Sealing rings are easy to replace
Large tooth center distance
Can be combined with HYGUARD® safety couplings, brake disks, torque measuring shafts, or other auxiliary equipment.

Parameter Name	Parameter Value
Type	flexible gear torsionally rigid
Product applications	transmission shaft
Other characteristics	torque
