Coupling flexible, compact, for reduced mounting nesting couples.

► Flexible element:
- Natural rubber block bonded to
- V-shaped metal armatures

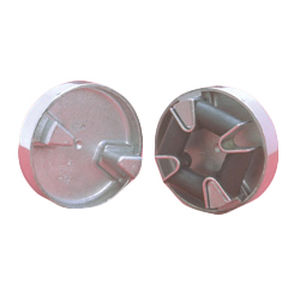

► Flange:
- aluminium or cast-iron
- DRIVE-SEGMENT
Avantages
► Highly effective attenuation of cyclic irregularities and peaks in the torque.
► Exceptionally long-life ensured by precompressing the flexible element.
► Tolerance to large misalignment: avoids the need for precise alignment of the machines to be coupled.

Specifications
The MINIFLEX coupling is designed with the following features:

► push it assembly;
► compact, smotth cylindrical shape without protrusions;
► the flexible element is precompressed during assembly, which extends the range of operating conditions where the rubber is not subject to tension.

Parameter Name	Parameter Value
Type	flexible
Product applications	flange machines
Other characteristics	torque compact large
Installation system	flange
Torque (Nm)	2.5 - 120
Rotational speed (rpm)	4000 - 4000
