Bolted-style flexible couplings transfer rotation between two shafts in a precise manner. They also reduce wear and tear on bearings that can lead to costly maintenance and reduced life of your encoder. A bolted-style coupling allows for larger shaft misalignments than clamp style couplings and can handle larger shafts and higher torques. Using Control-Flex Couplings will help extend the operational life of your encoder and guarantee accuracy.
Bolted-Style Flex Coupling Features

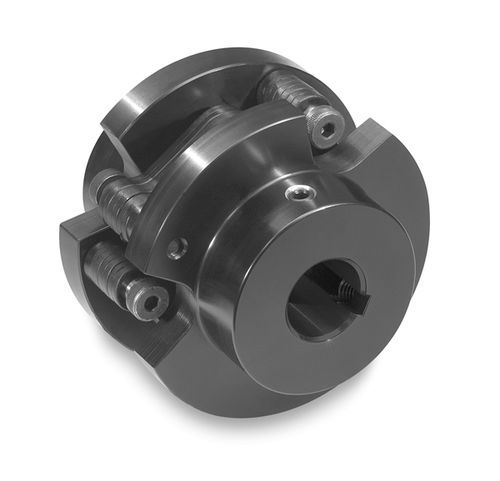

The construction of a Control-Flex Coupling consists of two hubs (that attach to the shafts) and a center flex member. This flexible element is affixed to the hubs through shoulder bolts. The bolted-style hubs incorporate a keyway and setscrew shaft attachment. Flex discs are bolted for drop-out capability, for easy installation and maintenance. This unique design means the reaction forces due to transmission of torque and unavoidable shaft misalignments are considerably smaller when compared with common flexible couplings.

Zero-Max bolted-style Control-Flex® Couplings were designed for encoder and instrumentation type applications. We offer couplings in four sizes that allow for maximum parallel shaft misalignments from 0.055” to 0.139,” maximum peak torques from 361 to 5,638 in-lbs., and maximum speeds from 2,500 to 6,300 RPM.
Control-Flex® Bolted-Style Coupling Benefits

Easy Installation
Space Saving
Electrically Isolating Flex Element
Large bore range, small to large shaft diameters available in any given size
Large Misalignment Capacity
Ultra-Low Reaction Loads
Zero Backlash Design
Maintenance Free

Parameter Name	Parameter Value
Type	flexible
Product applications	transmission shafts with encoder
Other characteristics	torque large
Installation system	sleeve and shear pin
Torque (Nm)	28.24 - 440.64
Rotational speed (rpm)	2500 - 6300
