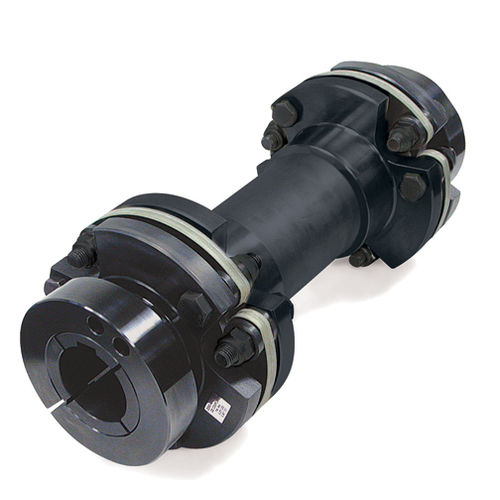

Clamp-Style Hubs are the most popular hub style used on Zero-Max Composite Disc (CD) Floating Shaft Couplings. This solution provides a zero backlash and torsionally stiff spacer coupling that provides superior misalignment capacity for applications where the drive and load components require further spacing from each other. The unique design delivers zero-backlash, excellent misalignment capacity and can be custom manufactured to any length requirement.

Zero-Max’s Floating Shaft Couplings provide excellent support for the floating shaft component with minimal radial loads on the connected equipment and bearings. Precision hardware and precise machining ensure smooth and accurate operation of the floating shaft spacer coupling.

Zero Backlash
Torsionally Stiff
High Misalignment Capacity
Excellent for Reversing Loads
Very Low Reaction Loads
Available in Aluminum, Steel, or Stainless Steel

Parameter Name	Parameter Value
Type	flexible disc
Product applications	shaft
Other characteristics	torque zero-backlash custom with floating shaft
Installation system	flange
Torque (Nm)	30.5 - 30.5
Rotational speed (rpm)	500 - 2250
