Sliced couplings - Highlights
The ASK sliced coupling is a solution for equalizing all kinds of offset. Its unique slit structure once revolutionized the coupling industry – over the years, this well established solution has come a long way and now represents the ideal solution for installation situations that involve misalignment or high levels of resonance. Not only does the one-part design ensure absolute stability at the highest speeds (>30,000 rpm) and a low mass moment of inertia, but it also enables maximum torsional stiffness to be achieved in the face of dynamic load changes.

Features
High torques
Isogonal power transmission
Equalizes offsets
Good resonance damping
Extremely torsionally stiff
Variable materials
High level of thermal stability
Maintenance-free and non-wearing
Low mass inertia
Application areas
All types of linear drive, rotary drive, oscillating chain drive, spindle drive
Conveyor systems
Special purpose machinery
Tool lines
Machine tools
Robotized lines
Precision tools
Measuring systems
Sectors
Machine tool manufacture
Special purpose machinery manufacture
Medical technology
Packaging industry
Conveyor technology
Robot technology
Textile machinery
Printing machinery
Food technology
Laboratory technology
Environmental technology
Semiconductor industry
Vehicle manufacturing and railway technology
Aerospace technology

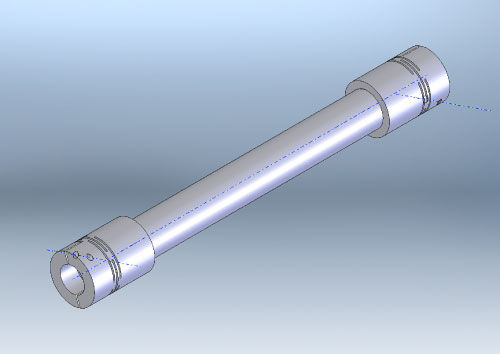

Sliced coupling with special length for bridging large shaft distances

Order example: ASK 070 SL D=32H7/38H7, e.g., L=560mm

Parameter Name	Parameter Value
Type	flexible
Product applications	for shafts conveyor spindle
Other characteristics	maintenance-free large
Torque (Nm)	0 - 0
Rotational speed (rpm)	30000 - 30000
