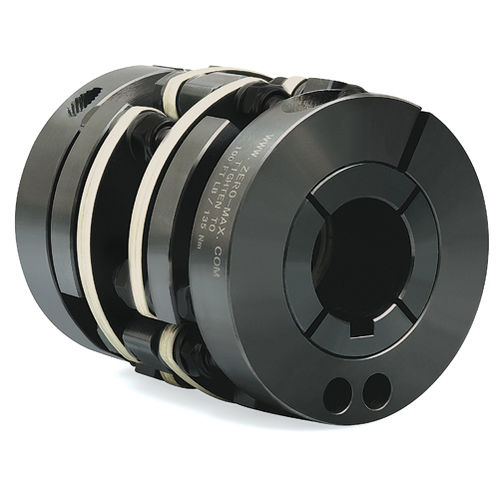

Steel Double Flex CD® Flexible Shaft Couplings provide a tough, robust, and durable design that is ideal for motion control applications requiring increased misalignment capacity compared to Zero Max’s Single Flex design . The Double Disc Composite CD Coupling’s high torsional stiffness, large misalignment capacity, and overall high-performance specifications are ideal for a range of standard and custom motion control applications. Constructed of high-quality and durable steel, these Double Flex Composite Disc Couplings offer the following advantages:

Zero Backlash
Torsionally Stiff
Excellent for Reversing Loads
Smooth Operating at High Speeds
Compact Design
Very Low Reaction Loads on shaft bearings due to misalignment
Clamp Style Hubs Available With or Without Keyways

Parameter Name	Parameter Value
Type	flexible disc
Product applications	shaft
Other characteristics	compact custom high-performance large clamp
Torque (Nm)	20 - 20 328 - 328
Rotational speed (rpm)	4100 - 12000
