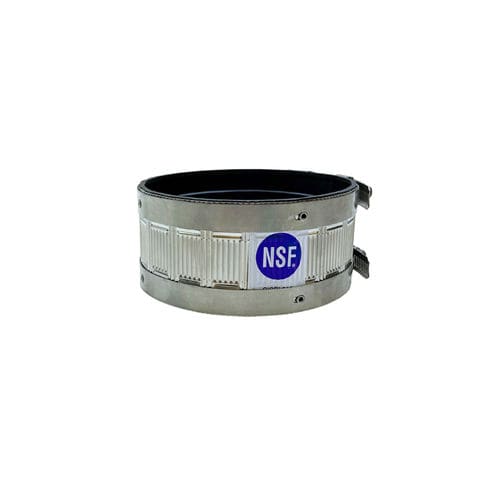

The original no hub coupling that is made in USA. A high quality low cost alternative where structural reinforcement does not require the use of a heavy duty coupling. In full compliance with ASTM 564, CISPI 310 and ASTM C1277, and also carries IAPMO, Canadian Std Association and NSF certification.

Material Specifications
Shield Material: 301 SS
Band Material: 301 SS
Housing Material: 301 SS
Screw Material: 305 SS
Eyelet Material: 300 SS
Gasket Material: ASTM C564 Compliant
Installation Torque: 60 in-lbs
Ultimate Torque: 75 in-lbs

Parameter Name	Parameter Value
Type	flexible
Product applications	industrial
Other characteristics	torque
Installation system	flange
