Flexible boroscope HTB500

Flexible boroscope HTB500

Flexible boroscope HTB500

About

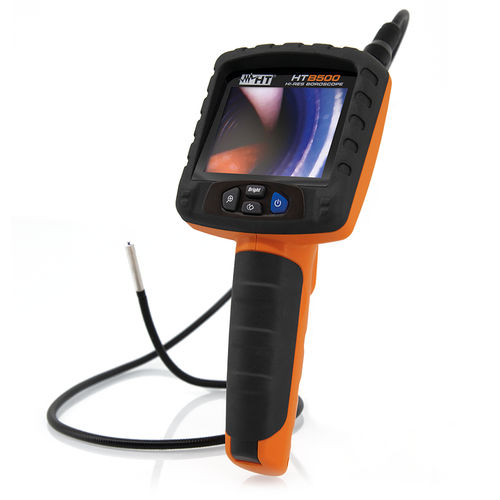

Boroscope with rechargeable battery and interchangeable probe

Model HTB500 is a portable digital borescope which allows carrying out inspections inside parts of objects not physically accessible (typically rotating equipment) and not visible to the naked eye. The instrument uses a waterproof external feeler with 4 LEDs with high brightness and a photo camera, in order to obtain a high-resolution image on the display.

Functions
•Sensor size:¼in (CMOS), 300.000pxl
•Max sensor resolution:640x480pxl
•Max sampling frequency:30FPS/S
•Color depth:24bit
•Image focus:fixed (5cm ÷ 15cm) (2.0in ÷ 5.9in)
•Zoom image:1.0x ÷ 2.0x
•External probe length:1m (39in)
•Probe diameter:6mm (0.2in)
•Iluminación de la cámara:4 LED white light
•Brightness adjustment:10 levels
•Rechargeable battery:Li-ION, 2000mAh
•Low battery indication -
•Battery operation time:5 hours
•Size (LxWx H) (mm):250 x 100 x 95mm
•Weight in grams (batteries included):345g
•Colour LCD display:640x320pxl
•Mechanical protection:IP54 (instrument), IP67 (external probe)
•PAL/NTSC video output



PARAMETERS

Parameter Name Parameter Value
Construction
flexible
Other characteristics
  • LCD display
  • portable
  • interchangeable probe
  • waterproof
Diameter (mm)
6 - 6
Applications
industrial
