Flexible borescope UT665

Flexible borescope UT665

Flexible borescope UT665

About

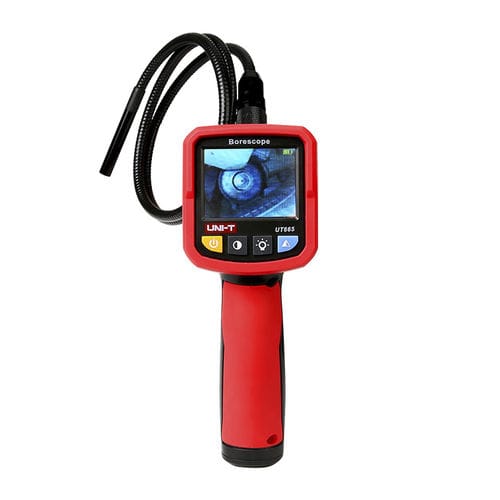

UT665 borescope displays clear images through a flexible camera probe. It is useful for viewing details of automobiles engine, pipelines, inner building walls, drain pipes, and other hard to reach locations. It is designed with 4-level adjustable LED lights and 180 degrees viewing angle IP67 probe, which can be submerged into water.

Features of UT665 Borescope

Certifications: CE, UKCA

● Real-time clear display
● Rotatable images
● Max 3m camera probe applicable
● 2.4 inches TFT screen, 480×234
● Adjustable image saturation of 6 levels
● Focusing distance: 20mm~100mm
● CE certification
● IP67 probe water proof

Specifications

Pixels - 640×480
Lens diameter - 9mm (Max. 10mm)
LCD size - 2.4 inches
Probe length - 1m
Screen type - TFT

Features

Light source - 4 LED lights
Depth of field - >20mm
Water proof - IP67 (probe only)
Video signal - Analog
Field of view - 60°
Image brightness - 6 levels-adjustable
Illumination - 4 levels-adjustable

General Characteristics

Power - 1.5V battery (R6) x 4
Display - 2.36 inches
Product color - Red and grey
Product net weight - 500g
Product size - 196mm x 74mm x 38mm
Standard accessories - Camera probe, batteries
Standard individual packing - Gift box, blister, English manual
Standard quantity per carton - 8pcs
Standard carton measurement - 455mm x 410mm x 275mm
Standard carton gross weight - 6.4kg



PARAMETERS

Parameter Name Parameter Value
Construction
flexible
Applications
  • industrial
  • for automobiles
  • for pipe
