Flexible borescope Q Series

Flexible borescope Q Series

Flexible borescope Q Series

About

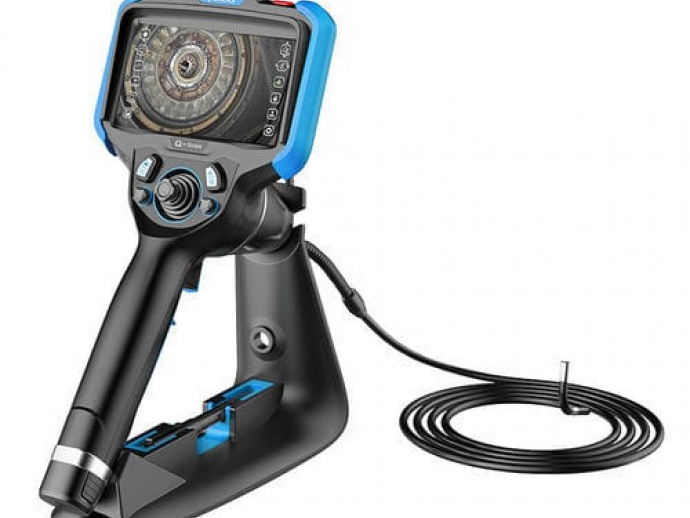

High definition, intelligent, convenient ——Q Series, adopting the latest digital high-definition image processing technology, with mega pixels and a 5.5-inch OLED big screen, to ensure clearer images. Even in strong sunlight,subtle defects can also be detected.In addition, this product adopts mechanical 360° rocker technology and replaceable insertion tube structure,with multiple camera options such as 2.2mm, 2.8mm, 3.9mm, 6mm forward or dual or interchangeable cameras. Users can choose any according to their needs. One base unit with multiple insertion tube options, customers can get the best combination at the best price to meet the needs of a variety of working conditions.

Technical Advantages:

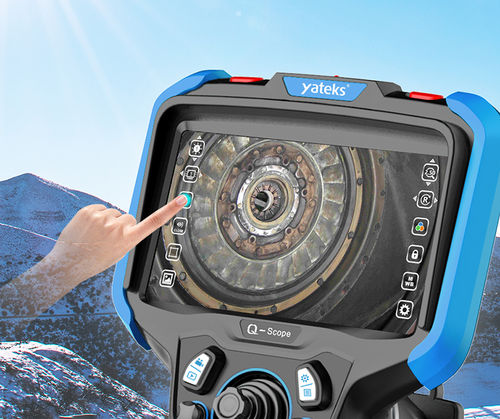

1.5.5-inch OLED touch screen, wider viewing angle, clearer display and more realistic color reproduction; Even in strong sunlight, subtle defects can also be detected.

2.High-definition megapixels, new digital high-definition image processing technology, ultra-clear images

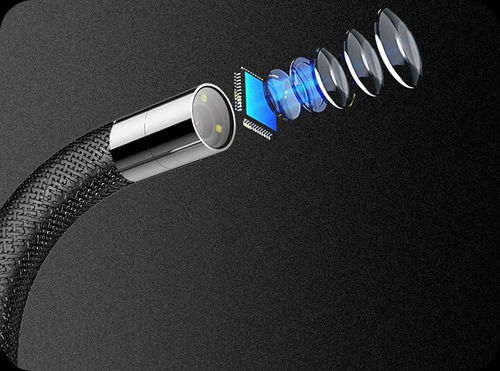

3.Interchangeable camera -forward, side view camera .

4.Flexible articulation -mechanical 360°steering function,one-way bending can be up to 220°

5.Unique dual-light compensation and navigation function

6.Probe of IP67 rating, can be deep to 1 meter under water

7.Replaceable insertion tube – tubes with different diameter &length &specs can be replaced to meet different onsite applications.

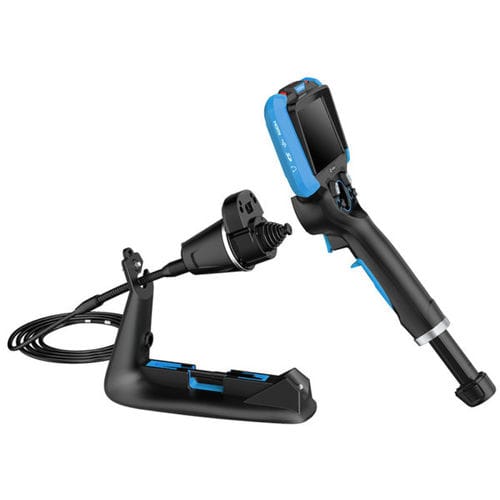

8.Stand structure -stand structure design, for long-term use, it can support the borescope on a platform; otherwise, magnetic stand is also optional. In special case, the instrument can be attached to metal surface for convenience of inspection.



PARAMETERS

Parameter Name Parameter Value
Construction
flexible
Applications
  • industrial
  • for automobiles
Other characteristics
  • portable
  • waterproof
Diameter (mm)
2.2 - 2.8
Cable length
  • 1 m, 1.5 m, 2 m, 3 m (3'03")
  • 1 m, 1.5 m, 2 m, 3 m(3'03" , 4'11" , 6'06" , 9'10" )
