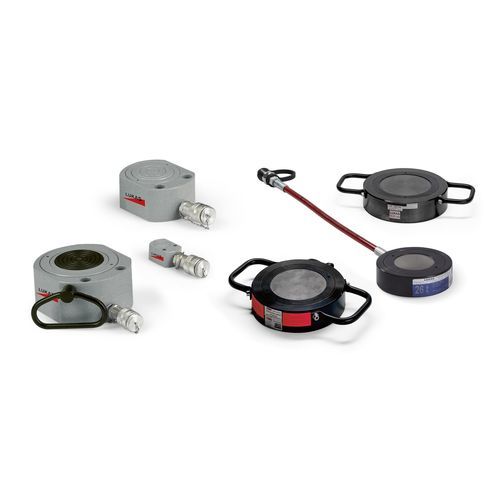

Our flat cylinders are designed for use on tight and heavy projects. They are suitable for lifting machinery, replacing bridge bearings, or serve as preparation for the use of a higher successor cylinder. The flat cylinders are returned to their original state by load or spring return.

Please order plug-in coupling nipples StNi 62 separately to replace standard screw couplings.

Advantages

•500 bar range with quick-release coupling to which the safe quick-stop system can be connected.
•700 bar range with international screw couplings
•Mounting holes as standard on 700 bar cylinders
•Fully loadable stroke limiter
•Extremely flat overall height from 32 mm
•Particularly small space requirement
•Made of hardened and tempered special steel
•Partially equipped with carrying handles
•Variants in the 500 bar and 700 bar range
•700 bar with spring return

Parameter Name	Parameter Value
Type	hydraulic
Configuration	spring-return single-acting load-return
Material	steel
Applications	for lifting applications
Other characteristics	flat
Stroke (mm)	10 - 11
Force (N)	43 - 1450
Pressure	500 bar, 700 bar (7,251.9 psi)
