Megadyne Megaflat PU Belts are available in unsupported, knitted and woven structures. Our knitted product offering includes belts that are both elastic and stable in design and available with neoprene or silicone elastomers. Our woven structure is also available in semi-stretch and stable constructions with urethane or foamed urethane elastomer.

Megaflat PU flat belt are used in both light power transmission applications as well as conveying of, paper products and light weight products.

Megaflat PU flat belts are used in applications as made or to create a foundation for covers and coating additions.

Features
Polyurethane MEGAFLAT: wide variety of coatings means wide range of application possibilities.

Foamed polyurethane (yellow, grey, red and white) for good coefficient friction to paper.
Silicones, in colours withe, grey, red and blue, FDA approved for high temperature.

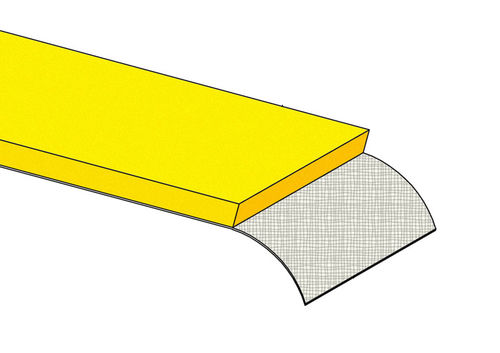

MAIN COMPONENTS
01 / BODY
Polyurethane on one side or both sides

02 / FABRIC
Knitted or woven substrate with reinforcement material that include polyester, aramid/polyester, nylon, polyester/cotton and aramid/polyester


Flat belts pu megaflat
MECHANICAL AND CHEMICAL PROPERTIES
high flexibility
small pulley diameters
dimensional accuracy
high speed
energy efficient
low vibration and noise
high friction surface
good chemical and ozone resistance
uniform elongation values
Series “P” belt working temperature -10°C / +60°C
Series “S” belt works in more extreme temperatures

Parameter Name	Parameter Value
Type	flat
Material	polyurethane
Other characteristics	flexible
