DYMCO produces open ended stainless steel drive tapes for applications such as robotics and other automated systems. Drive tapes share the same stainless steel properties DYMCO’s stainless steel conveyor belts possess, such as:

• Strength
• Rigidity
• Minimum elongation
• Corrosion resistance
• Minimum backlash unlike geared timing belts
• No outgas under vacuum or high temperatures
• Minimum particulate generation for use in clean room environments

Applications:
• 3D printers
• LCD production and other devices are required
• Printhead carriage drive

CUSTOMIZED PRECISION

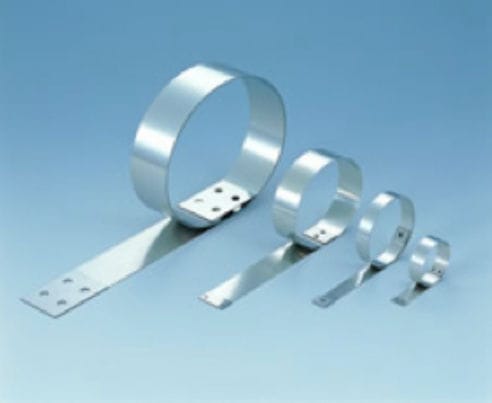

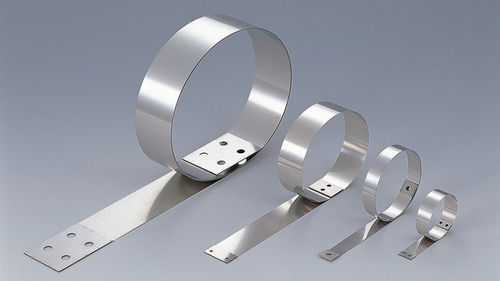

Drive tapes are designed with reinforced end anchor attachments for use in robotic applications and 3D printers, where precision and inertness are essential, using critical tolerances for near perfect repeatability.

Parameter Name	Parameter Value
Type	flat
Material	inox
Product applications	for robots for automation for lifting applications for actuators
Other characteristics	heat-resistant
Length (mm)	3300 - 3300
Width (mm)	30 - 30
Thickness	0.08 mm, 0.15 mm (0 in)
