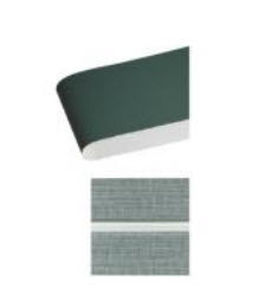

NEOPREN FLAT BELTS
FLEXIBILITY AND ECONOMY
Technical features:

Up to 16 t of lifting force
Belt widths (mm): 30, 50 , 60, 75, 90, 100, 150
Tensile member made of steel

Benefits to you at a glance:

Considerably smaller pulley diameters compared to conventional drive mechanisms
Maintenance-free operation and thus no service or repair costs
Application possible on cylindrical pulleys
Temperature-resistant from -25 °C to +100 °C
High degree of resistance to external influences, abrasion and ageing
Electrically conductive as per ISO 9563
Higher operating speeds with simultaneous reduction of the noise level when compared to chains and steel ropes.

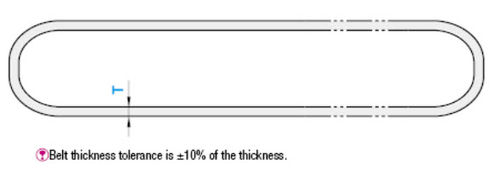

Very low thickness tolerance of +/- 0.13 mm, resulting in even distribution of force in the flat belts while rolling up
Simple installation using clamp connections
Silicone-free design available on request

Walther Flender neoprene flat belts open up new dimensions for driving lift systems. The considerably smaller pulley diameters compared to conventional drive mechanisms allow a system design that saves space and money. Rolling up the flat belt also allows for very low headroom and high effective stroke.
The flat belt is particularly heavy-duty and maintenance-free, i.e. both lubrication and retightening and thus service and repair costs are a thing of the past. The flat belt can also be installed quickly and easily using clamp connections. The flexible design means that the flat belt can be used both as a lifting belt and a drive belt.
The unique elastomer mix has a particularly long service life and, when compared to chains and steel ropes, has a more even and quieter run as well as offering higher speeds.

Parameter Name	Parameter Value
Type	flat
Material	steel, elastomer
Product applications	pulley
Other characteristics	maintenance-free flexible
