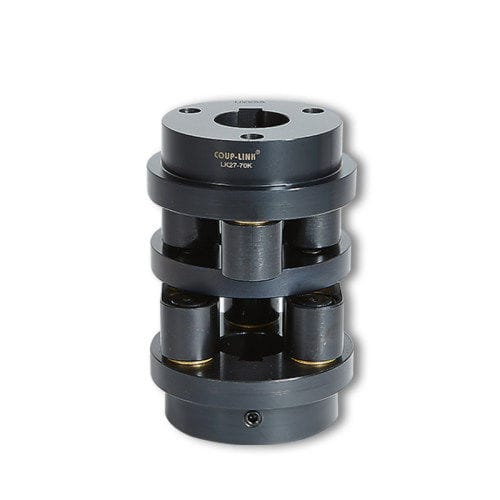

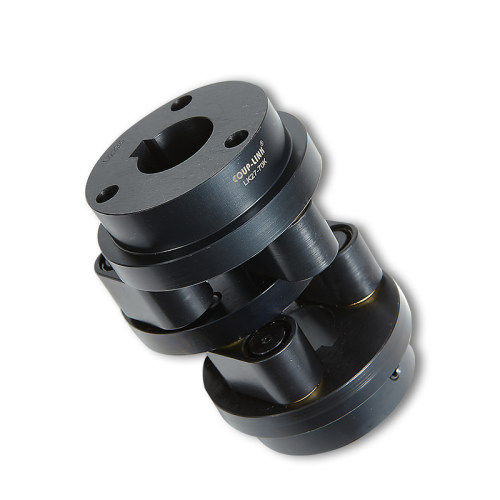

Schmidt coupling

A compact, torsionally stiff high-performance coupling for a large, variable radial
offset, transmit shafts over a wide range while rotating.

Main specification:
High torsional stiffness
Absorbs radial vibration
Combination of different Product line-up

Main application:
packaging machines such as driving cartoner modules, box folding machine or folding mechnisms;
printing machines such as printing mechanisms drive system, paint rollers and duct rollers;
and much more, for example profiling systems, coating facilities, forming system, lamination process in woodworking/furniture industry.

Parameter Name	Parameter Value
Type	flexible
Product applications	for shafts transmission for electric motors for servo motors for mechanical power transmission for machines for the packaging industry industrial for conveyors for the textile industry
Other characteristics	torque backlash-free high-performance high-torque double flanged
Installation system	flange
Torque (Nm)	49 - 49 68 - 68 350 - 350 996 - 996
Rotational speed (rpm)	1800 - 1800
