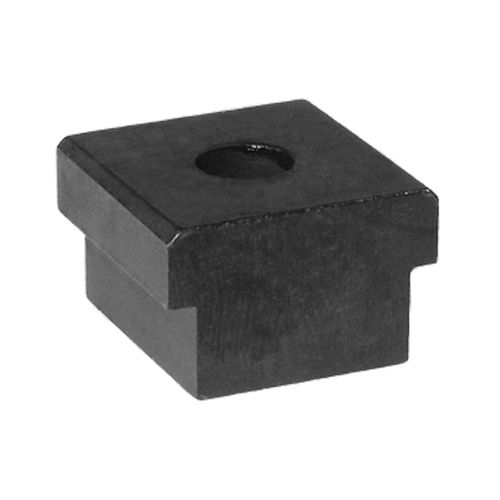

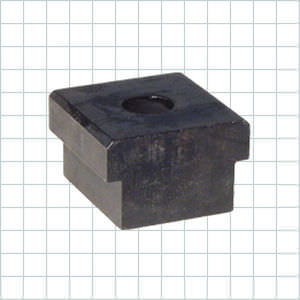

Step Fixture Keys
Locators

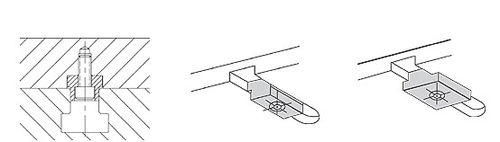

Adapts a key-slotted fixture or vise to machine tables with a different slot size. Keys are available for machine-table slots either larger or smaller than the fixture slot. Top and bottom of key are centered within .0005" of each other. Fasten with a socket-head cap screw (not furnished). Available for fixture-slot sizes from 1/2 to 13/16" (20mm in metric), and table-slot sizes from 7/16 to 13/16" (12 to 20mm in metric). Made in USA.

Mild steel, carburized-hardened, black oxide finish. DFARS and RoHS compliant.

Parameter Name	Parameter Value
