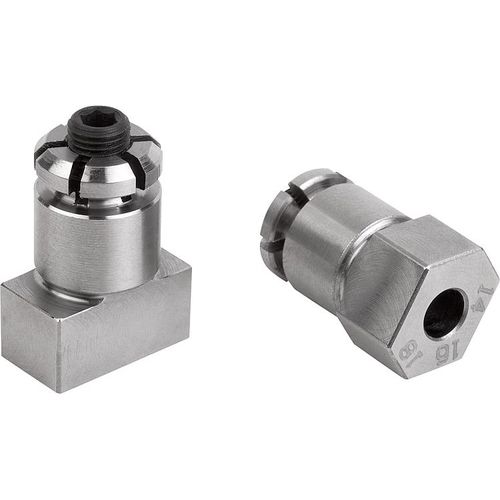

Locating pins expanding

Material:
Carbon steel.

Version:
Tempered and black oxidised.
Locating diameter and guide faces ground.

Note:
These expanding locating pins enable e.g. tooling plates to be positioned in the T-slots of machine tables (see illustration).
The plates to be positioned must have two holes matching the expanding pin diameter.
The expansion screw has a broached through hexagonal hole allowing the pin to be tightened or loosened from two sides.

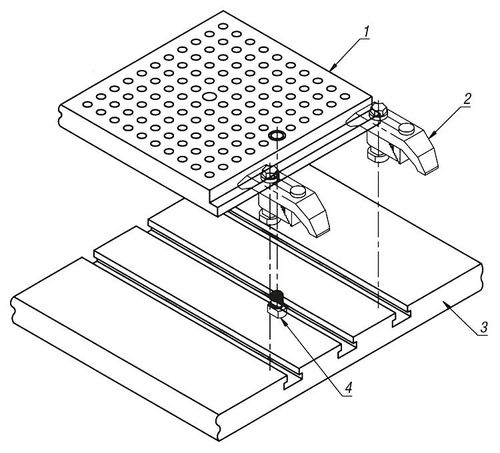

Drawing reference:
1) tooling plate
2) clamp straps
3) machine table
4) expanding locating pin

Parameter Name	Parameter Value
