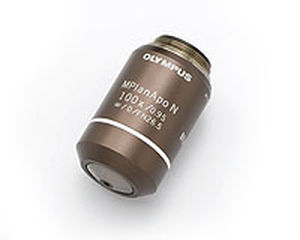

Fixed-focus objective lens MPLAPON

Fixed-focus objective lens MPLAPON

Fixed-focus objective lens MPLAPON

About


Our MPLAPON Plan Apochromat objective lens Series provides the highest level of chromatic correction and resolution capability available from Olympus. High level wavefront aberration correction is guaranteed.

M Plan Apochromat MPLAPON
• Dedicated for brightfield microscopy, simple polarized light and DIC (Differential Interference Contrast).
• The Plan Apochromat series provides the highest level of chromatic aberration of the Olympus objective lenses. Guaranteed optical performance (wavefront aberration) with a Strehl ratio of 95% or better.
• Compatible with the Olympus autofocus unit, ideal for automating the inspection process.

Strehl ratio: Indicates as a percent, the ratio of the proportion of light that an actual optical system can concentrate with respect to the proportion of light concentrated in the image plane (central intensity) by an ideal, aberration-free optical system, with the latter serving as 100%. A higher percentage indicates a higher quality optical system.

Specifications
Magnification [X]: 50
Numerical aperture (NA): 0.95
Working distance (WD) [mm]: 0.35
Objective Field Number: 26.5
Immersion medium: Air/Dry
Spring loaded: Yes
Correction collar: N/A
Correction range of correction collar: N/A
Iris: N/A
Correction level of chromatic aberration: Apochromat(APO)
Parfocalizing distance [mm]: 45
Back focal plane (BFP) position: -8.0
Type of screw thread: W20.32X0.706(RMS)
Brightfield(Reflected): Excellent
Brightfield(Transmitted): Excellent
Darkfield(Reflected): N/A
Darkfield(Transmitted): N/A
DIC(Reflected): Good
DIC(Transmitted): N/A
Phase Contrast: N/A
Relief Contrast: N/A
Polarized Light: Limitation
Fluorescence (B, G Excitation): N/A



PARAMETERS

Parameter Name Parameter Value
Type
fixed-focus
Technical applications
  • inspection
  • for microscopy
Other characteristics
apochromatic
Focal length
  • Min.: 400 mm(15.75 in)Max.: 700 mm(27.56 in)
  • Max.: 700 mm(27.56 in)Min.: 400 mm(15.75 in)
