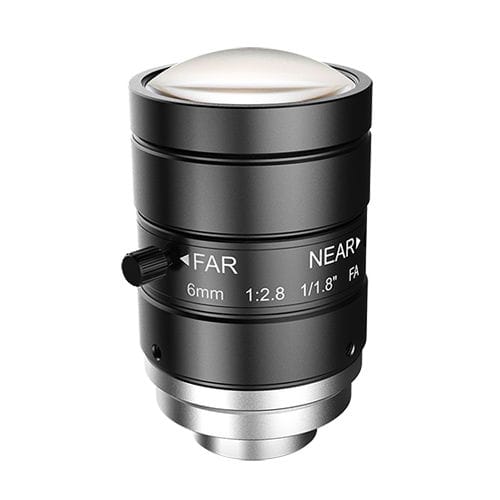

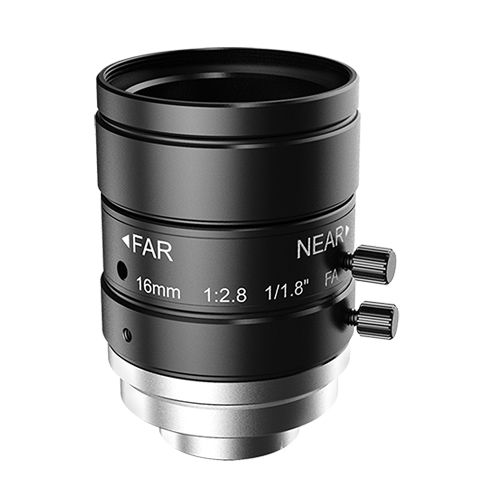

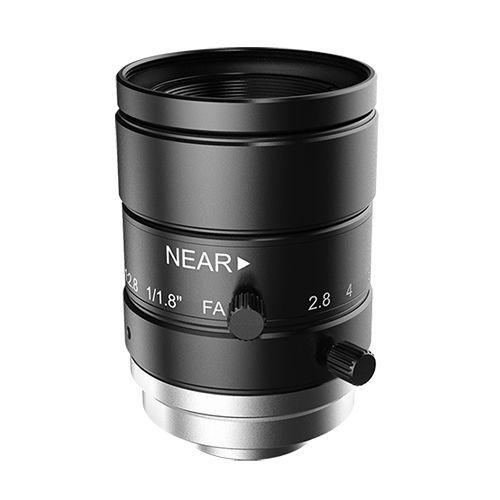

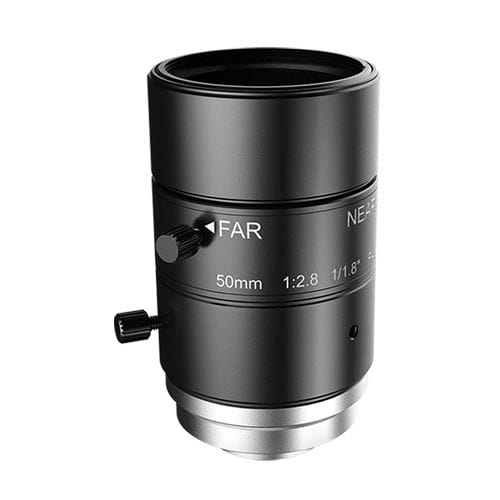

Fixed-focus camera lens MH-SP series

in Lenses

Fixed-focus camera lens MH-SP series
in Lenses

Fixed-focus camera lens MH-SP series

in Lenses

About


● Support up to 1/1.8" camera sensors;
● 7 models, focal length covering from 6mm to 50mm;
● High resolution for 3MP camera in full of view,high edge definition;
● Design for close working distance,more suitable for industrial vision inspection scenarios;
● Ultra low distorion;
● Stable sharpness quality when temperature varies from -10℃~50℃;

Aperture
F2.8 - 16

Image Sensor Size
Ф9.4 mm(1/1.8'')

Focus Range
0.08 m to infinite

Optical Distortion
-1.5%

TV Distortion
-0.04%

Field of View
74.8°×63.5°×44.8° (9 mm×7.4 mm×5.3 mm)

Relative Illumination
58% (F2.8); 78% (F4.0)

CRA(Chief Ray Angle)
2.6°

Spectral Range
436 nm~656 nm

Spectral Transmission
T>85%

Camera Mount
C - Mount

Filter Thread
No

Focus Control
Manual

Iris Control
Manual

Product Dimensions
41.66×Ф29 mm

Weight
67.34 g



PARAMETERS

Parameter Name Parameter Value
Type
fixed-focus
Technical applications
  • machine vision
  • inspection
Other characteristics
  • high-resolution
  • low-distortion
Focal length
Max.: 50 mm(1.97 in)Min.: 6 mm(0.24 in)
