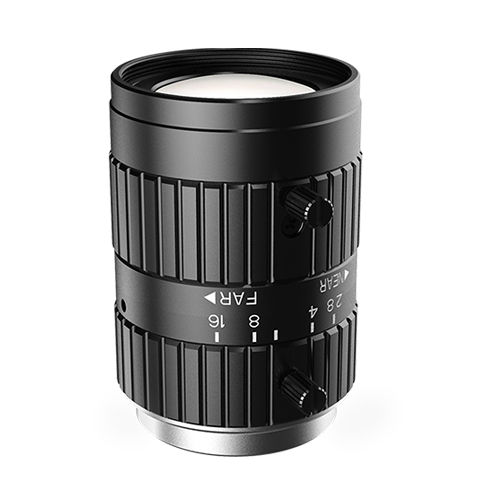

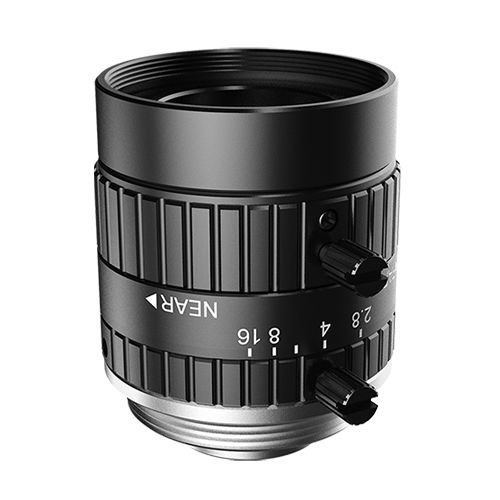

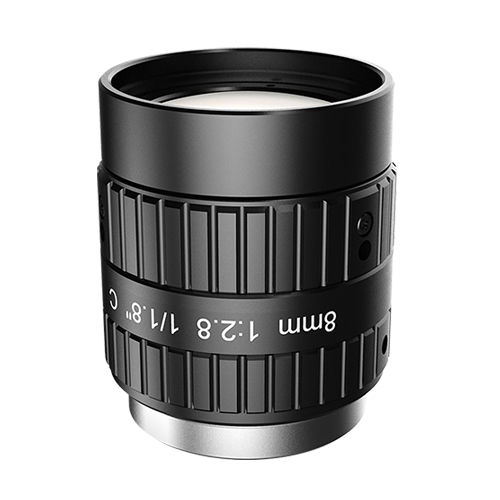

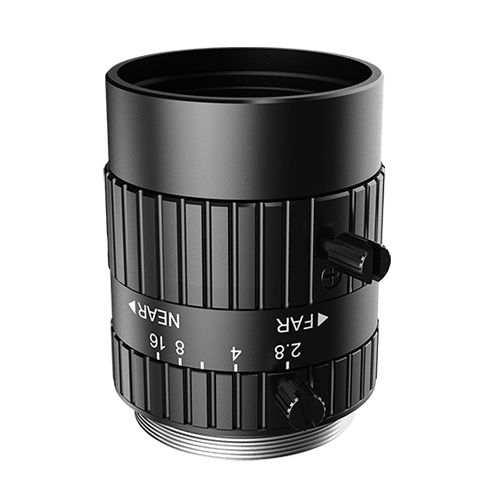

Fixed-focus camera lens A9-6MP Series

in Lenses

Fixed-focus camera lens A9-6MP Series
in Lenses

Fixed-focus camera lens A9-6MP Series

in Lenses

About


● Support up to 1/1.8" camera sensors;
● 6 models, focal length covering from 8mm to 50mm;
● High resolution for 6MP camera in full of view,high edge definition;
● Design for close working distance,more suitable for industrial vision inspection scenarios;
● Ultra low distorion;
● Stable sharpness quality when temperature varies from -20℃~50℃;

Aperture
F2.8 - 16

Image Sensor Size
Ф9.4 mm(1/1.8'')

Focus Range
0.1 m to infinite

Optical Distortion
-0.28%

TV Distortion
-0.15%

Field of View
58.94°×50.36°×34.81° (9 mm×7.4 mm×4.9 mm)

Relative Illumination
80% (F2.8); 90% (F4.0)

CRA(Chief Ray Angle)


Spectral Range
436 nm~656 nm

Spectral Transmission
T>85%

Camera Mount
C - Mount

Filter Thread
M27×P0.5

Focus Control
Manual

Iris Control
Manual

Product Dimensions
30.78×Ф30 mm

Weight
48±5 g



PARAMETERS

Parameter Name Parameter Value
Type
fixed-focus
Technical applications
  • machine vision
  • inspection
Other characteristics
  • high-resolution
  • low-distortion
Focal length
Max.: 50 mm(1.97 in)Min.: 8 mm(0.31 in)
